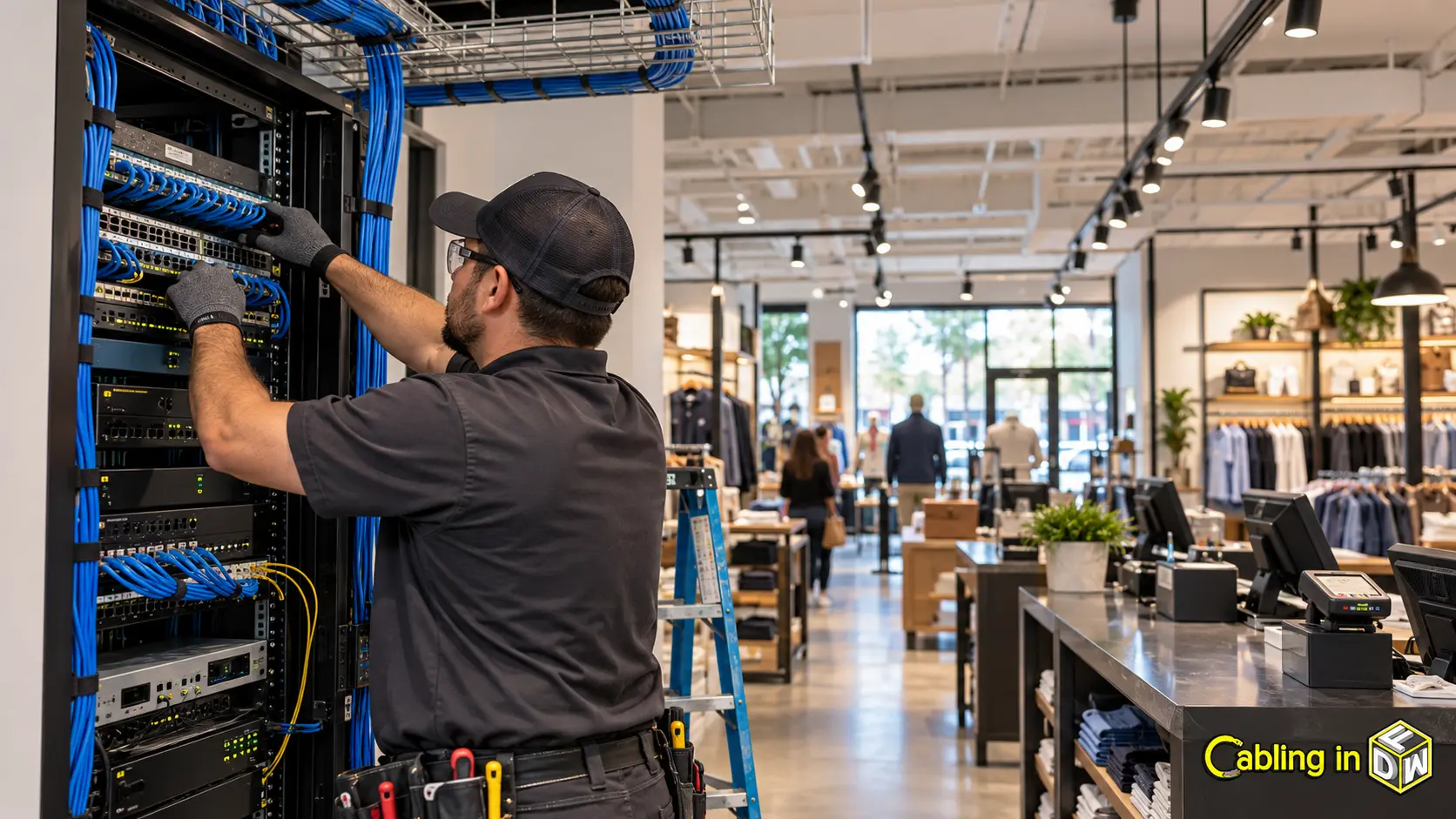

Structured Cabling Solutions for Retail Environments in DFW

Retail cabling problems rarely start when the POS terminal goes down. They start weeks earlier, when the store layout gets finalized and nobody counts the data drops. A checkout counter gets shifted six feet to the left. The stockroom scanner loses its connection every ten minutes. The security cameras miss the entrance entirely. And the network closet ends up in a storage room with no ventilation and no ceiling access.

For Dallas-Fort Worth retail stores, this kind of planning gap turns a straightforward cabling project into an expensive fix-it job. Whether you are opening a new location in Plano, remodeling a strip center unit in Irving, or rolling out a franchise concept across Fort Worth, the cabling plan needs to happen before the walls go up and the fixtures go in.

This guide walks through retail network cabling planning step by step. You will learn how to map data drops by store zone, what each area actually needs, how to avoid the mistakes we see on DFW retail job sites every week, and when to call in a cabling contractor for a retail site assessment.

What Is Retail Network Cabling Planning?

Retail network cabling planning is the process of mapping every data drop, cable pathway, and network connection point inside a retail store before any cabling gets installed. It covers POS systems, payment terminals, Wi-Fi access points, security cameras, inventory scanners, digital signage, and back-office equipment. The goal is to make sure every device has a tested, labeled connection in the right spot when the store opens.

The planning phase sits between the floor plan and the actual cable pull. It answers questions like: How many data drops go behind the checkout counter? Where do the Wi-Fi access points need to be mounted for full sales floor coverage? Does the stockroom need its own network drop for a label printer, or can a wireless connection handle it? Where does the NVR sit relative to the security camera runs?

Skipping this step, or doing it loosely, creates problems that are expensive to fix once the drywall is up and the fixtures are bolted down. A retail store in Frisco that installs counters before placing data drops is going to pay more for surface-mounted cable runs or wireless workarounds that are not as reliable. Retail network cabling planning prevents that.

Why Structured Cabling Matters for DFW Retail Stores

Structured cabling gives a retail store a single organized cabling system that connects every device to a central patch panel and network closet. Instead of separate cable runs going in different directions with no documentation, structured cabling uses labeled ports, organized pathways, and tested connections. This makes troubleshooting faster, future expansion easier, and daily network performance more consistent.

A retail store is not a standard office. The devices are spread across multiple zones with different power and bandwidth requirements. POS terminals at the checkout need stable, wired connections that cannot drop during a credit card transaction. Security cameras need PoE cabling routed through ceiling spaces. Customer Wi-Fi access points need to cover a wide, often open sales floor without dead zones. Staff Wi-Fi might run on a separate VLAN. And the stockroom typically has scanners, label printers, and at least one workstation that all need network access.

Without structured cabling, you end up chasing problems one cable at a time. We have walked into Dallas retail stores where nobody knew which port connected to which device, the patch panel had no labels, and adding a single camera meant a half-day of cable tracing. That is the kind of mess structured cabling installers are trained to prevent from day one.

What Cabling Does a Retail Store Usually Need?

A typical retail store needs Cat6 or Cat6A data drops for POS systems, payment terminals, receipt printers, barcode scanners, back-office computers, and VoIP phones. It also needs PoE cabling for Wi-Fi access points and IP security cameras, plus cable pathways from each zone back to a central network closet with a rack, switch, and patch panel. Some stores also need cabling for digital signage, kiosks, access control systems, and customer-facing display screens.

The exact count depends on the store size, layout, and the number of technology touchpoints. A small boutique in Carrollton might need 12 to 15 data drops total. A large-format retail store in Arlington might need 60 or more. Franchise locations often have a standard IT spec that dictates exactly how many drops go where, but even those specs need to be adapted to the specific building’s ceiling type, wall construction, and conduit access.

Here is a quick breakdown of typical retail cabling components: Cat6 or Cat6A Ethernet drops for wired devices, PoE cabling for wireless access points and IP cameras, a patch panel and network rack in the closet or back office, cable management and labeling at every termination point, and fiber for backbone connections if the store has a large footprint or connects to a shared building network. For a deeper look at how Cat6 and Cat6A compare in commercial installations, review our guide on Cat6 vs Cat6A for commercial installations.

Zone-by-Zone Cable Mapping for Retail Stores

Every retail store has five core zones that need cabling: checkout counters, stockrooms, the main sales floor, security camera locations, and the back office or network closet. Each zone has different devices, different bandwidth needs, and different physical constraints. Mapping cable drops zone by zone before installation prevents missed connections, reduces rework, and keeps the project on schedule.

Checkout Counters and POS Systems

The checkout area is the most device-dense zone in a retail store. Each checkout station typically needs a data drop for the POS terminal, another for the payment terminal, and connections for a receipt printer, barcode scanner, and possibly a customer-facing display screen. Some setups include a VoIP phone at the counter. If the store runs backup internet or a failover system, you may need an extra drop per station for redundancy.

For a store with four checkout lanes, that can mean 16 to 24 data drops just in the checkout zone. These drops need to be in place before the counters are built or bolted down. Running cables after the counter is installed means surface-mounted conduit or floor-routed cables, both of which look bad in a customer-facing retail environment and cost more.

POS cabling should always be wired, not wireless. A credit card transaction that drops mid-swipe costs the sale and shakes customer confidence. Cat6 is the minimum for retail POS network cabling, but Cat6A is a better call if the store plans to add PoE devices or upgrade bandwidth in the next few years.

Stockrooms and Inventory Management

The stockroom does not get the same attention as the sales floor during planning, but it has its own cabling needs. Inventory scanners, label printers, shipping workstations, and back-office computers all need reliable network connections. Some of these devices run on Wi-Fi, which means the stockroom also needs a wireless access point with a dedicated PoE cable run.

A common mistake in DFW retail buildouts is assuming the stockroom can share the sales floor Wi-Fi signal. Stockrooms are typically separated by walls, shelving units, and stacked inventory that block wireless signals. A scanner that drops its connection in the middle of a receiving session slows down the whole inventory process. Plan at least two to four data drops in the stockroom, depending on the number of workstations and scanning stations, plus one for a ceiling-mounted access point.

For stores that use handheld inventory tablets or mobile scanning devices, the access point placement in the stockroom matters just as much as it does on the sales floor. If the stockroom is large, or broken up by shelving, a single AP may not cover it. Factor that into the cabling plan early.

Main Sales Floor and Wi-Fi Coverage

The sales floor needs cabling for two primary purposes: Wi-Fi coverage and any hardwired devices like digital signage, kiosks, or product displays. Customer Wi-Fi and staff Wi-Fi should run on separate networks, usually separate VLANs on the same access points, which means the access points need data drops that support both.

Wi-Fi access point placement is one of the most underplanned parts of retail cabling. The AP needs to be ceiling-mounted, powered by PoE, and positioned to cover the full floor area without dead zones. In a long, narrow retail space common in Dallas strip centers, that might mean two or three APs spaced evenly. In a wide-format store, it might mean four or more. Every AP needs a Cat6 or Cat6A cable run back to the network closet.

Digital signage is getting more common in DFW retail spaces. If the store plans to mount screens near the entrance, on end caps, or behind the register area, each screen location needs a data drop. Kiosks need both a data drop and power. Mobile POS stations, where a sales associate processes transactions from a tablet anywhere on the floor, rely on strong Wi-Fi coverage, which again comes back to proper access point cabling.

Security Camera Placements and PoE Cabling

Retail security cameras need PoE cabling, meaning the camera gets both its data connection and electrical power through a single Ethernet cable. Each camera location needs a dedicated Cat6 or Cat6A run from the camera mounting point back to the network closet, where it connects to a PoE switch and records to an NVR.

Typical camera placements in a retail store include the main entrance, each checkout lane, the stockroom, the receiving dock, the sales floor, at least two angles, and exterior areas if the store has a parking lot or loading zone. A small retail store might need six to eight cameras. A larger space could need 12 or more.

The key planning issue with security camera cabling for retail stores is ceiling access. In a lot of DFW shopping centers and strip malls, the retail units have drop ceilings, which makes running PoE cable to camera locations relatively straightforward. But some older buildings in Irving or Dallas have hard ceilings or open structural ceilings that require conduit or surface-mounted raceways. That adds cost and changes the cable route, so it needs to be identified during the site assessment, not discovered during the install. For more on PoE cabling, including how it applies to camera and access point installations, review the PoE cabling guide for DFW businesses.

Back Office, Network Closet, and Patch Panels

Every cable in the store terminates at the network closet. This is where the switch, patch panel, router, NVR, UPS, and any other network equipment lives. In most retail stores, the closet is a small room in the back, sometimes shared with the electrical panel or alarm system.

The network closet needs ventilation. Equipment generates heat, and a sealed room without airflow will cause switch failures and NVR overheating over time. It also needs enough rack space for the patch panel, a managed switch, PoE if the store has cameras and APs, the NVR, and room for expansion. Labeling every patch panel port with a matching label at the other end of the cable is not optional. It is the only way to troubleshoot and manage the network without tracing cables through the ceiling. That is part of every structured cabling project Cabling in DFW completes for retail clients across Dallas-Fort Worth.

Retail Zone Cabling Comparison Table

This table maps each retail zone to its typical devices, cabling requirements, and planning notes. Use it as a reference when reviewing your store layout with your cabling contractor or IT team. Matching the right cabling to each zone before installation prevents rework and keeps the project on budget.

Store-Layout Checklist Before Finalizing Floor Plans

Before you sign off on a retail floor plan, run through this list with your cabling contractor. Every item below affects where cable drops go, how many you need, and what the installation will cost. Catching these details before construction starts saves time, money, and the headache of drilling through finished walls.

• Mark every checkout counter location on the floor plan.
• Count POS terminals, payment terminals, and backup POS needs per station.
• Mark receipt printer, barcode scanner, and customer display locations.
• Identify customer Wi-Fi and staff Wi-Fi coverage areas.
• Mark stockroom workstation, scanner, and label printer locations.
• Identify all security camera viewing areas, including entrances, checkout, stockroom, sales floor, receiving, and exterior areas.
• Mark digital signage and kiosk locations.
• Confirm the network closet or rack location and confirm it has ventilation.
• Check ceiling access, existing conduit, and wall pathways for cable routes.
• Confirm landlord or shopping center building rules for cabling and ceiling access.
• Confirm whether installation needs to happen after hours or during open business.
• Note any planned future technology additions, such as mobile POS, additional cameras, or expanded signage.

If you want a broader commercial checklist, our commercial cabling assessment checklist for DFW covers the full scope for DFW commercial spaces.

What Affects the Cost of Retail Cabling in DFW?

The cost of retail cabling in DFW depends on the number of data drops, the cable type, Cat6 vs. Cat6A, the length of each cable run, ceiling type, building access, and whether the project is a new buildout or a remodel. A small retail store with 15 drops typically costs significantly less than a large-format store with 60 or more drops, conduit requirements, and after-hours scheduling.

Here are the main cost drivers:

• Number of cable runs. Each data drop includes the cable, termination at both ends, testing, labeling, and patching at the panel. More drops means more material and more labor hours.
• Cable type. Cat6A costs more per foot than Cat6 but supports 10Gbps and higher PoE wattage, which matters if the store plans to use PoE cameras, access points, or powered signage. For most DFW retail stores opening in 2026, Cat6A is the better long-term investment.
• Ceiling type and building construction. Drop ceilings make cable pulling faster and cheaper. Hard ceilings or open plenum ceilings require conduit, J-hooks, or surface-mounted raceways, all of which add time and cost.
• Remodel vs. new buildout. In a remodel, existing walls, fixtures, and active systems are already in place. The cabling crew has to work around them, which takes more time than pulling cable in an open construction site.
• After-hours and weekend scheduling. Many shopping centers in Plano, Irving, and Fort Worth require after-hours work to avoid disrupting neighboring tenants. This adds labor cost but protects the store’s revenue during the install.

For a breakdown of commercial cabling costs specific to DFW, review the pricing guide for office network cabling cost in DFW.

How to Plan a Retail Network Cutover Without Disrupting Business Hours

A retail network cutover is the transition from an existing network to a newly cabled system. For stores that are open during the project, the cutover needs to happen without knocking out POS terminals, Wi-Fi, cameras, or back-office systems during business hours. The way to do that is phased testing, off-hours switching, and rollback planning.

Here is the approach we use on retail cutover projects across DFW:

1. Complete the full site assessment before pulling any cable.
2. Pre-label every new data drop with the port number and zone ID.
3. Install all new cabling during off-hours when possible, including nights, weekends, or before the store opens.
4. Keep the existing POS and network systems active until every new drop is tested and verified.
5. Test each new data drop with a Fluke tester before connecting any device.
6. Move devices in phases: POS first, then Wi-Fi APs, then cameras, then back-office equipment.
7. Keep rollback options ready for business-critical systems, especially POS and payment terminals.
8. Schedule the final system switch and testing before the next business day opens.
9. Document the entire port map, patch panel layout, and device assignments.

The biggest mistake we see on DFW retail cutovers is trying to do everything in one shot. If the POS goes down during business hours because someone pulled the old connection before the new one was tested, the store loses sales. Phased switching prevents that.

Common Retail Cabling Mistakes to Avoid

Most retail cabling problems are planning problems, not installation problems. The cable pull itself is usually straightforward. What goes wrong is the scope, timing, and coordination. Here are the mistakes that show up on DFW retail job sites most often.

• Finalizing the floor plan before counting data drops. Once counters, shelving, and display fixtures are placed, adding drops means surface-mounted runs or tearing into finished walls. Count drops first, then finalize the layout.
• Relying on Wi-Fi for POS and payment terminals. Wireless POS is fine for mobile checkout tablets with strong AP coverage, but the primary payment terminals should always be hardwired. A dropped connection during a chip or tap transaction costs the sale and frustrates the customer.
• Putting the network closet in a dead corner. The network closet needs to be central enough that cable runs are not excessively long, ventilated enough that equipment does not overheat, and accessible enough that an IT tech or cabling contractor can service it without moving inventory around.
• Skipping the security camera cabling plan. Cameras are often the last thing planned in a retail buildout, which means the cable routes get squeezed, the PoE budget on the switch gets overlooked, and the NVR placement becomes an afterthought. Plan camera coverage at the same time you plan data drops.
• Forgetting about future expansion. A store that opens with 20 drops and adds online order fulfillment, curbside pickup stations, or additional signage a year later will need more drops. Running a few extra cables during the initial install is far cheaper than coming back to add them later.

Local DFW Retail Cabling Considerations

Retail cabling in Dallas-Fort Worth comes with a few local factors that affect how a project is scoped and scheduled. Understanding these before the project starts helps avoid surprises during installation.

Shopping center and strip center rules vary. Some property management groups in Plano and Frisco have strict rules about when contractors can access the building, whether cabling can penetrate shared walls, and how telecom rooms are managed. Some require a building engineer to be present during any work above the ceiling. Always confirm these rules before scheduling the install.

Shared telecom rooms are common in multi-tenant retail buildings. In Irving, Arlington, and Richardson, the cabling contractor may need to coordinate access and make sure the store’s equipment is in its own locked section of the room.

Ceiling types vary across DFW retail spaces. Older buildings in Dallas may have hard plaster ceilings with no drop ceiling access. Newer construction in Frisco and Celina typically has drop ceilings that are easier to work with. The ceiling type directly affects cable routing, labor hours, and cost.

After-hours scheduling is standard for open stores. Most DFW retail cabling projects happen during off-hours to avoid disrupting customer traffic and sales. Cabling in DFW schedules retail installs around store hours, including early mornings, evenings, and weekends. That flexibility keeps the store running while the cabling work gets done.

For location-specific information about our DFW service area, visit Dallas cabling, Plano cabling, or Frisco cabling.

When Should a Retail Business Call a Cabling Contractor?

The best time to call a cabling contractor is during the floor plan stage, before construction starts, before fixtures are ordered, and before the IT equipment is purchased. A site assessment at this stage lets the contractor map every drop, identify cable pathway options, flag potential issues with ceiling access or building rules, and give you an accurate scope and cost before any money is committed to the build.

You should also call a cabling contractor if you are planning a remodel that moves checkout counters, changes the stockroom layout, or adds new technology. A POS upgrade, Wi-Fi expansion, or new security camera system almost always means new cable runs. The same goes for franchise rollouts, where each new location needs a cabling plan adapted to the building.

Waiting until the build is finished and then calling a contractor to run a few cables usually means working around completed walls, installed fixtures, and an operating store. That costs more and takes longer than planning the cabling from the beginning.

If your store is in the planning stage, or if you are about to start a remodel, this is the right time to schedule a site visit. Cabling in DFW handles retail cabling projects across Dallas, Fort Worth, Plano, Irving, Frisco, Arlington, Carrollton, and the entire DFW metro. Data and voice cabling installation services are available for retail stores of all sizes.

Why DFW Retail Businesses Choose Cabling in DFW

Cabling in DFW is a commercial low-voltage cabling company based in Carrollton, TX, serving retail stores, offices, warehouses, and commercial buildings across Dallas-Fort Worth since 2009. Here is what retail clients get when they work with our team.

• BICSI-trained technicians. Every tech on our crew is trained to the industry standard for commercial cabling. That matters when you are running 40 or 50 drops through a retail ceiling with limited access and a tight schedule.
• Every run tested and documented. We Fluke-test every cable and label every port. You get a full documentation package before we leave the site. When your IT team needs to trace a connection six months later, they will find it immediately.
• 5-year workmanship warranty. If a cable fails because of our install, we fix it. No asterisks, no service call fees.
• Based in Carrollton. We do not dispatch from out of state. Response times are short, and we are on-site when we say we will be there.
• 400+ commercial projects completed across DFW. Retail stores, offices, medical buildings, warehouses, and franchise rollouts. We have worked in most building types across the metro.

FAQs About Retail Network Cabling Planning

What is retail network cabling planning?

Retail network cabling planning is the process of mapping every data drop, cable run, and network connection point inside a retail store before installation begins. It covers POS systems, payment terminals, Wi-Fi access points, security cameras, inventory scanners, digital signage, and back-office equipment, and it determines how many drops each zone needs, what cable type to use, and where the network closet should be located.

How many data drops does a retail store need?

It depends on the store size and technology requirements. A small retail store typically needs 12 to 20 data drops. A larger store with multiple checkout lanes, security cameras, Wi-Fi access points, and a stockroom can need 40 to 60 or more. A cabling contractor can give you an exact count after reviewing the floor plan and device list.

What cabling is needed for POS systems?

Each POS station typically needs two to four Cat6 or Cat6A data drops to support the terminal, payment processor, receipt printer, and barcode scanner. Wired connections are recommended over wireless for POS to avoid transaction drops. Drops should be placed before checkout counters are installed.

Should a retail store use Cat6 or Cat6A cabling?

Cat6A is the better choice for most DFW retail stores opening or remodeling in 2026. It supports 10Gbps speeds and higher PoE wattage, which matters for cameras and access points. Cat6 works for stores with smaller budgets or fewer PoE devices, but Cat6A avoids the need for a re-pull when bandwidth requirements increase.

Can cabling be installed while the store is open?

Yes, but most retail cabling installs in DFW are scheduled during off-hours to avoid disrupting customers and staff. Early mornings, evenings, and weekends are common scheduling windows. The cutover from old systems to new cabling should be phased so that POS and payment systems stay active during business hours.

What cabling is needed for retail Wi-Fi access points?

Each Wi-Fi access point needs a Cat6 or Cat6A cable run from the ceiling mount location back to the network closet, connected to a PoE switch. Most retail stores need two to four access points depending on floor size and layout. Customer Wi-Fi and staff Wi-Fi can share the same APs using separate VLANs.

Do security cameras need separate cabling?

Yes. IP security cameras in retail stores use PoE cabling, where each camera has its own Cat6 or Cat6A cable run from the camera location to a PoE switch in the network closet. The cameras connect to an NVR for recording. Analog cameras use coaxial cable and a separate DVR, but most new retail installs use IP cameras exclusively.

When should a retailer request a site assessment?

Request a site assessment as soon as you have a floor plan or lease agreement in hand. The cabling contractor needs to walk the space, evaluate ceiling access, identify cable pathways, and count data drops before construction begins. For remodels, the assessment should happen before any fixtures are moved or walls are opened. Cabling in DFW offers free retail site assessments across Dallas-Fort Worth.
