Can You Get a Rough Estimate for Network Cabling Before a Site Visit?

You have a floor plan, a rough idea of how many network drops you need, and a budget conversation coming up. The question is whether a cabling contractor can give you a ballpark number before anyone sets foot in your building. The short answer: yes, with the right information. But the number you get at that stage is an estimate, not a final price. This guide covers what you need to send a contractor to get a preliminary network cabling estimate, what that estimate can and cannot tell you, and what still has to wait for the site visit.

Need a preliminary cabling estimate for your DFW office or facility?

Cabling in DFW offers free site visits across Dallas-Fort Worth.

Send your floor plans and drop count to get started.

Why Businesses Want a Number Before the Site Visit

Budget approvals don’t wait for contractors. If you’re an IT manager in Plano getting ready for a new office buildout, or a property manager in Arlington coordinating a multi-tenant fit-out, you need at least a rough range to put in front of decision makers. Nobody wants to schedule three site visits just to find out the project is outside their budget.

That’s the gap a preliminary estimate fills. It gives you a working number, a price range based on the information you can share right now, so you can decide whether to move forward with a formal site visit and detailed proposal. It’s not a commitment from either side. It’s a filter.

The catch is that not every contractor will give you one, and the ones who do need specific information to make it useful. A vague request like “how much for cabling my office” gets a vague answer. The more detail you provide up front, the tighter the range.

What to Send a Contractor for a Preliminary Estimate

A contractor can give you a more useful ballpark quote when you send the right materials. None of this requires a site visit on your part. It’s information you should already have access to, or can get from your building manager or architect.

Scaled Floor Plan

This is the single most useful document. A floor plan with dimensions lets a contractor estimate cable run lengths, identify where drops will go, and map pathways from the telecom room to each work area. PDF format is fine. Even a hand drawn sketch with accurate measurements is better than nothing.

Drop Count and Locations

How many network drops do you need, and where? Mark them on the floor plan if you can. Include workstations, conference rooms, wireless access points, printers, VoIP phones, security cameras, and any other connected devices. A 30 drop office is a different conversation than a 120 drop warehouse.

Cable Type Preference

Cat6 and Cat6A are the most common choices for commercial installs in Dallas-Fort Worth. If you’re not sure which one you need, say so. A good contractor will recommend the right cable for your use case rather than default to the cheapest option.

Ceiling Type and Height

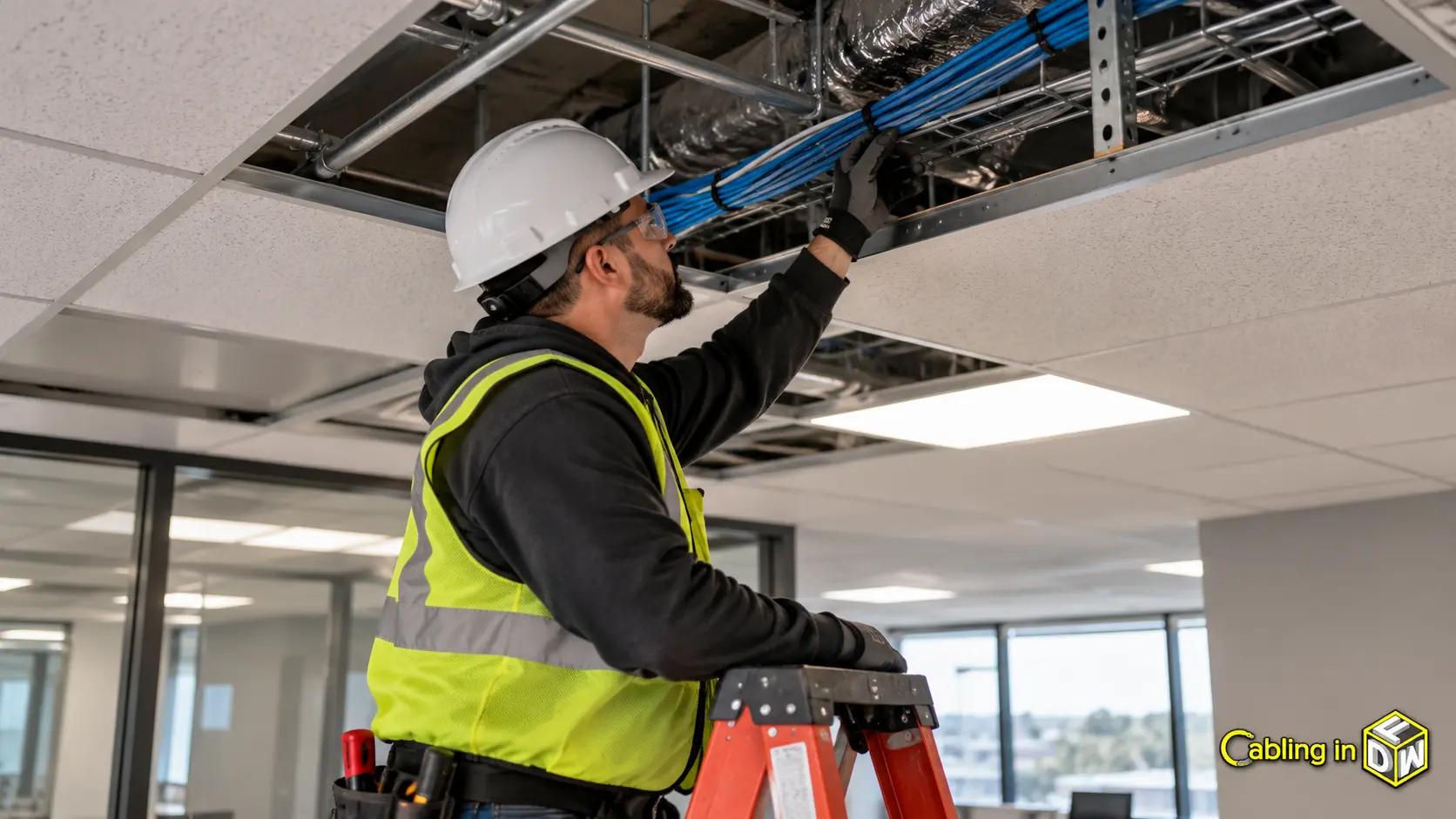

Drop ceilings, open ceilings, and hard lids affect installation time and cable routing. Ceiling height matters too. A standard 9 foot drop ceiling is straightforward. A 24 foot open warehouse ceiling in Irving changes the labor estimate significantly.

Telecom Room Details

Does your building have an existing telecom closet or server room? Is there a rack in place? How much space is available? If you’re starting from scratch, that adds rack, patch panel, and cable management costs to the project.

Timeline

Are you working around a move in date, a lease start, or a construction schedule? Rush jobs and after hours work affect pricing.

What a Preliminary Estimate Can and Cannot Tell You

A ballpark estimate based on floor plans and drop counts gives you a price range. Think of it as the starting point for budget planning, not the number you write on a purchase order.

What it can tell you: the approximate cost per drop for your cable type and building configuration, the rough total for materials and labor based on the information you’ve shared, and whether the project fits within your budget range. If the ballpark is $15,000 to $20,000 and your budget is $8,000, you’ve saved everyone a trip.

What it cannot tell you: the final installed price. There are physical site conditions that only a walk through can verify. A contractor preparing a site survey will need to confirm things like available cable pathways between floors, whether the ceiling space above the drop ceiling is clear or packed with HVAC and plumbing, the condition of existing cabling and infrastructure, fire rated wall and floor penetrations that need special treatment, and whether plenum rated cable is required by code for your building.

These are the kinds of things that separate a rough estimate from a binding proposal. A responsible contractor will tell you the same thing: the preliminary number is a planning tool, and the final scope and price come after a physical assessment of the building.

If you have floor plans ready and want a preliminary range for your project, Cabling in DFW can give you one. Send your plans and drop count to request a free estimate.

From Ballpark to Final Quote: What Happens at the Site Visit

Once you’ve seen the preliminary estimate and decided the project is worth pursuing, the next step is a site visit. This is where the contractor walks the building, confirms or adjusts the scope, and puts together a detailed proposal with a firm price.

During a site visit for a commercial cabling project, the contractor will typically verify cable pathway availability by checking above ceiling tiles and through walls, confirm telecom room location, rack space, and power availability, identify any existing infrastructure that can be reused or needs to be removed, check for code requirements like plenum rated cable or fire stop needs, assess whether the work can be done during business hours or requires off hours scheduling, and note any access issues such as locked riser closets, shared spaces in multi-tenant buildings, or active construction zones.

All of this feeds into the final proposal, which should include a complete scope of work, an itemized breakdown of materials and labor, timelines, and warranty terms. If you’re comparing proposals from multiple contractors, understanding what a thorough commercial cabling quote should include helps you evaluate them fairly.

Preparing for a site visit goes faster when you’ve already gathered the basics. Having your floor plan, drop counts, and any existing network documentation ready means the contractor can spend their time assessing the building rather than asking you to track down information afterward.

Common Mistakes When Requesting a Cabling Estimate Before a Site Visit

Treating the Estimate Like a Fixed Price

A preliminary estimate is a range, not a contract. If a contractor quotes $18,000 to $22,000 over email and the site visit reveals asbestos tiles above the ceiling or no pathway between floors, that number will move. Expect it.

Leaving Out the Floor Plan

Without a scaled floor plan, a contractor is guessing at run lengths. That makes the estimate wider and less useful. If you don’t have a plan, your building manager or leasing company likely does.

Underestimating Drop Counts

Count every device that needs a wired connection, not just desktops. Wireless access points, IP phones, printers, security cameras, and badge readers all need drops. Missing ten drops on a 50 drop project changes the price by 20%.

Not Specifying the Cable Type

Cat6 and Cat6A have different price points. Cat6A cable and components cost more, and the cable is thicker, which affects conduit sizing and J-hook capacity. If your data cabling installation needs to support 10 Gigabit Ethernet or PoE++ devices, Cat6A is the right call. But that should be part of the conversation up front, not a surprise after the site visit.

Why DFW Businesses Choose Cabling in DFW

BICSI-trained technicians. Every tech on our crew is trained to the Building Industry Consulting Service International standard for commercial cabling. That affects everything from cable handling to termination quality.

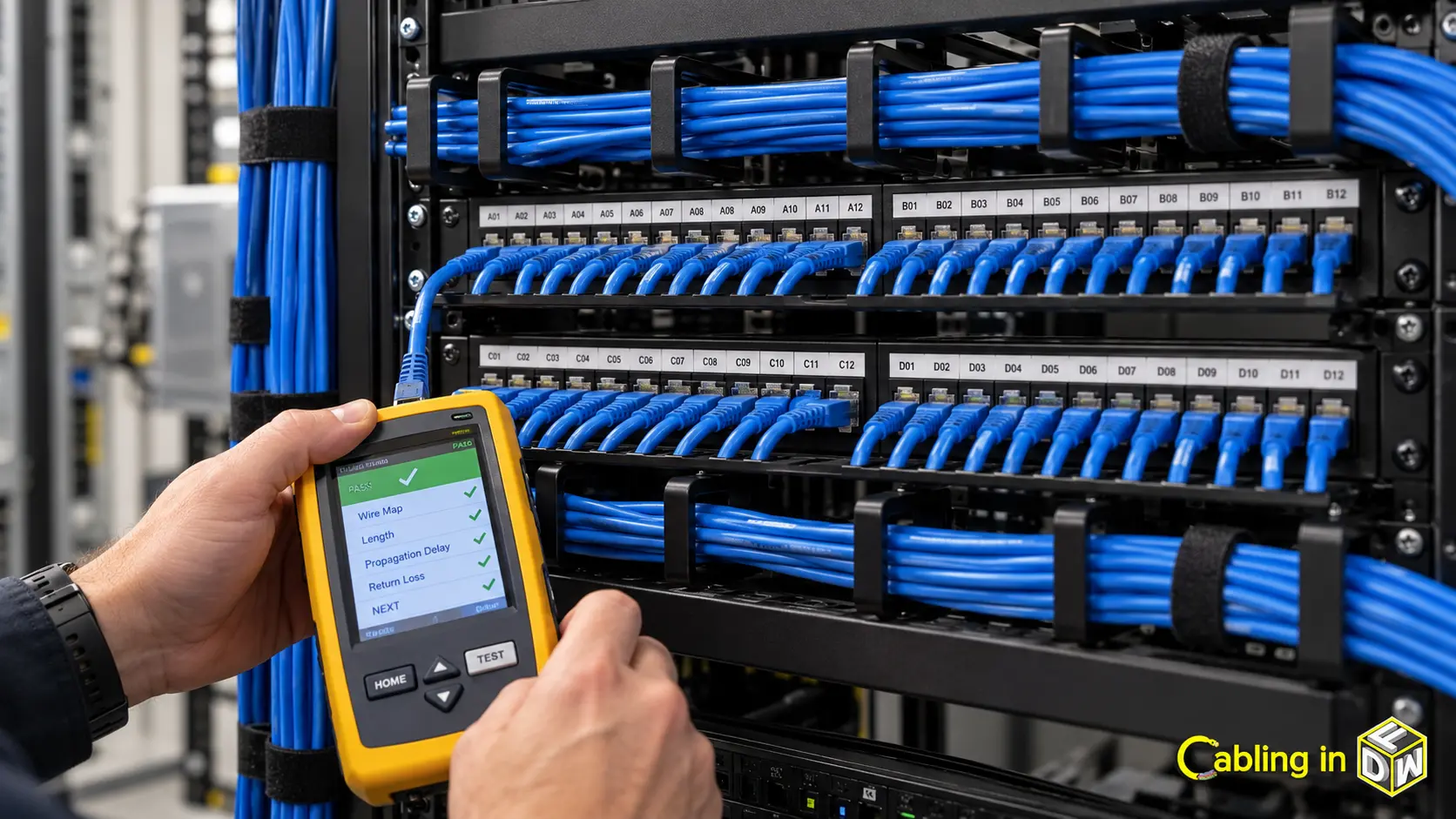

Every run tested and documented. We Fluke test every cable and hand over full certification reports before we close out a project. You get documentation that proves every run meets spec.

5-year workmanship warranty. If a cable fails due to our installation, we fix it. No ambiguity.

Based in Carrollton. We’re local to Dallas-Fort Worth, not dispatching from out of state. Response times to Dallas, Fort Worth, Frisco, McKinney, and the wider DFW metro are short.

400+ commercial projects completed. Offices, warehouses, medical buildings, schools, and retail spaces across the DFW metro since 2009.

Frequently Asked Questions

Can I get a network cabling estimate without a site visit?

Yes. If you can provide a scaled floor plan, a drop count with locations marked, your preferred cable type, and basic building details like ceiling type and height, a contractor can give you a preliminary price range. The number will be a ballpark, not a final quote, but it’s enough for budget planning.

How accurate is a ballpark cabling quote based on floor plans?

It depends on the quality of the information you provide. A scaled floor plan with marked drop locations and ceiling details gets you a range within 10% to 20% of the final price in most cases. Missing details like cable pathway obstructions or code requirements typically only surface during a site visit.

What cable type should I specify when requesting an estimate?

For most DFW office environments, Cat6 or Cat6A are the standard choices. Cat6 supports 1 Gigabit speeds and handles most current office needs. Cat6A supports 10 Gigabit and higher power over Ethernet, making it the better long term investment for new construction or buildings expecting network growth.

How many network drops does a typical DFW office need?

A common guideline is two drops per workstation, plus additional drops for printers, wireless access points, VoIP phones, security cameras, and conference rooms. A 20 person office might need 50 to 70 drops depending on the layout and equipment. Cabling in DFW walks through the count during the site visit to make sure nothing is missed.

Does Cabling in DFW offer free site visits?

Yes. Cabling in DFW provides free site visits across Dallas-Fort Worth for commercial cabling projects. The visit includes a walk through, scope review, and a detailed proposal with a firm price. There is no obligation.

How long does it take to get a preliminary estimate after sending floor plans?

In most cases, we can return a preliminary range within one to two business days of receiving your floor plan, drop count, and building details.

What areas in DFW do you serve?

Cabling in DFW serves the entire Dallas-Fort Worth metro, including Dallas, Fort Worth, Plano, Irving, Frisco, McKinney, Arlington, Garland, Richardson, Carrollton, Denton, and surrounding cities. See our full service area list.

Ready to Get a Preliminary Estimate for Your DFW Cabling Project?

Send Cabling in DFW your floor plans and drop count, and we’ll send back a preliminary price range, usually within one to two business days. If the numbers work, we’ll schedule a free site visit to finalize the scope and lock in a firm quote.
