When Should You Use a Crossover Cable in Network Setup?

The Ethernet cable still plays a crucial role even in a world dominated by wireless connectivity. But what many businesses fail to realize is that not all Ethernet cables are the same—they differ in purpose and use. One such Ethernet cable is a crossover cable. The crossover cable stands out as a niche but is a vital tool in many network specifications.

Most businesses prefer using the straight-over cables for their office networks, but there are times when the crossover cable seems the right fit and also the only choice. But here’s the thing. The Ethernet cable wiring installation reveals how crucial it is to understand when to use a crossover cable to save your time and frustration before using this in your network setup.

This doesn’t matter whether you’re setting up a test lab, connecting two computers directly, or dealing with legacy networking equipment; understanding this is something you cannot afford to miss.

Hear straight from the structured cabling contractors on when you should use the crossover cable in the network setup to make the best use of it.

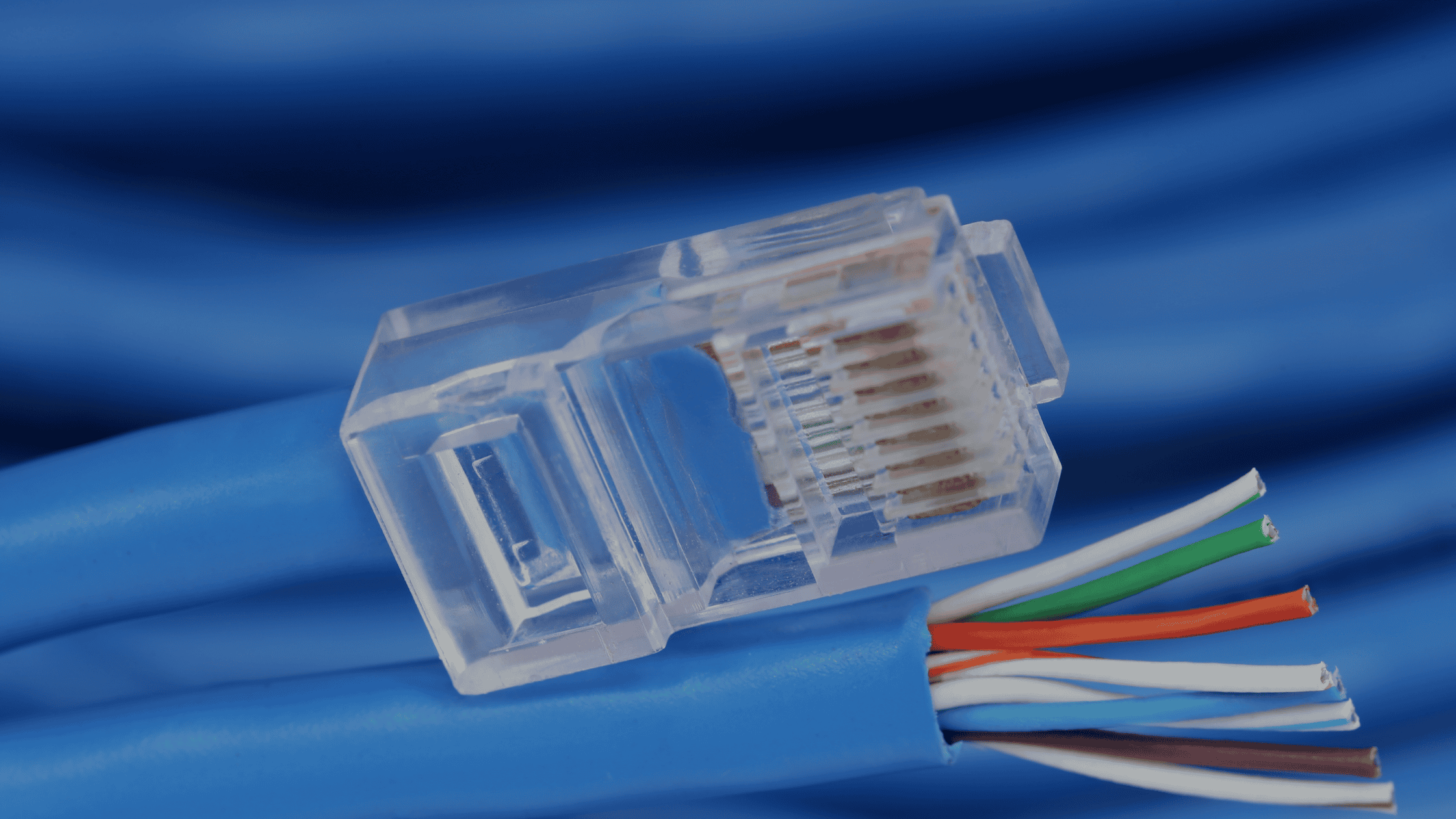

Crossover Ethernet Cable

How can you expect to use the cable when you don’t even know about the cable? Not possible, right? So, let’s understand what a crossover cable is first. The transmit and receive signals, when reversed on one end of the cable, are deemed a crossover cable.

In other words, this is where the wires inside the cable are arranged in a way that one device’s output is sent to another, which in turn enables direct communication without any intermediary.

There are also standard Ethernet cables. These cables are known as straight-through cables. Devices such as a computer can be connected to a switch using these cables. But when it’s about connecting two cables, then use a crossover cable. Otherwise, there are chances of communication conflicts.

The Ethernet cable wiring installation services reveal that the Cat5, Cat5e, and Cat6 cables are used in the making of the crossover cables, but it also depends on your speed and bandwidth needs.

Why Are Crossover Cables Used Even Today?

The crossover cables were a must for certain connections, but only before modern networking devices evolved with smart technology. A crossover cable was your go-to tool if you wanted to link two computers together to share files or run basic network simulations without any switches or hubs.

It was mostly this cable only that was in use because early computers and network devices lacked auto-MDI/MDI-X capability. It is a technology that uses which the ports automatically detect the type of connection required. It also adjusts the signal transmission.

The straight-through cable didn’t use to work. It was the crossover cables that made it possible for both systems to send and receive data correctly. Today, also, the old routers, switches, and industrial equipment also require crossover cables for configuration.

When Should You Use a Crossover Cable in Network Setup?

No doubt that crossover cables are not used frequently in business networks today, but they still play a crucial role in specialized setups. Get a glimpse of the situations where the crossover cables are used.

Direct PC-to-PC Ethernet connection

The primary case where the crossover cable is used is in direct PC-to-PC Ethernet. The crossover cable happens to be of use when connecting two computers without a switch or a router. There are numerous environments where this kind of setup is a must, such as:

• Field operations because of the infrastructure.
• The data transfer between two computers, especially the large files, gets faster.

This is especially relevant for IT technicians working in remote areas or conducting diagnoses.

Switch to the Switch Connection.

The switch-to-switch connections are the next crossover cable use. The crossover cables were used in a growing network where you need to interconnect the switches to expand the port availability. But this is only for older or unmanaged switches, not otherwise.

The crossover cable used in such setups facilitates seamless data exchange between the two switches, and that too without creating network loops.

Router-to-Router Communication

The next comes the router-to-router communication. It is crucial to connect the routers directly in network configurations such as testing routing protocols or building lab environments. This is where the crossover cable helps and enables direct communication.

The crossover cable enables routers to communicate and exchange routing information, simulating large enterprise networks.

Hub-to-Hub and Router-to-PC Setups

Another crossover cable use is hub-to-hub and router to PC setups. Hubs are obsolete and no longer used today, but they were very common in simple LAN networks in previous times. The businesses require crossover cables to connect two hubs and ensure correct signal flow between the devices.

Besides this, the crossover cable is also used when connecting an old router directly to a PC for configuration or troubleshooting, especially if the router has no auto-sensing capabilities.

When NOT to Use a Crossover Cable in Modern Networks?

The crossover cables are unnecessary in modern setups because of the new technology in newer network cards and switches. Crossover cables are less necessary in modern networks due to advancements in network cards and switches that support auto-sensing.With this innovation, the devices can automatically detect the type of cable plugged in and adapt accordingly.

Here are scenarios where you don’t need a crossover cable in modern networks.

• When linking the modern switch to another switch.
• When using a network adapter, support auto-sensing.
• When setting up a network with wireless devices or managed switches.

There are chances that you are already benefiting from the automatic crossover adjustment without even realizing it if you are using devices from the last decade.

How to Identify a Crossover Cable: Proven Methods Explained?

The data cabling electrician reveals that it is crucial to know whether you’re using the crossover or the straight-through cable, as this ensures that the right connections are made.  You can identify a crossover cable using both manual and technical methods.

Visual Inspection

The first way to identify the crossover cable is via visual inspection. You can easily inspect the wire colors, as most Ethernet cables are transparent at the RJ-45 connector. Here’s more about this.

• You’ll notice the same wiring sequence on both ends of the straight-through cables, like either both ends use T568A or both use T568B.
• But a crossover cable? It has T568A wiring on one end and T568B on the other.

Also, you can identify both cables by their color positions. The few color positions are as follows:

You know it is a crossover cable when pin 1 (green/white) on one end aligns with pin 1 (orange/white) on the other end.

The visual inspection method is gold only if you’re working with a few cables or looking for a quick re-check in the field.

Using a Cable Tester

A cable tester also goes a long way in helping you identify the crossover cables. But this will only work if you are dealing with multiple cables or working in a professional setting.

The cable tester helps you to check pin alignment and signal continuity. All you need to do is simply plug each end into the tester to display the mismatched pin pairings. This indicates that it is the crossover cable.

Color Coding or Labeling

You can also identify the crossover cable with the Ethernet cable color code. The professionals, such as the data cabling electrician, often color-code or label the crossover cable to avoid mix-ups. Due to this, some crossover cables come in red or yellow.

So, make sure to label the cables clearly if you’re creating your own. The proper identification not only ensures the right functionality but also helps at the time of troubleshooting headaches caused by the misuse of cables.

Key Advantages of Crossover Cable Use

There are numerous scenarios in which the crossover cables still hold value, but these also come with their own set of limitations. Get to understand its benefits straight from the structured cabling contractors to help you understand better.

Direct Device-to-Device Communication

The most significant and primary benefit of crossover cables is the direct device-to-device communication. It is with the crossover cables only that you can allow devices such as two PCs, routers, or switches to communicate without requiring additional hardware.

This direct communication is beneficial in labs, test environments, or fieldwork setups.

Saves Cost

The crossover cables are the right fit for you if you have a tight budget and are looking to save some cost. The crossover cables can be used to eliminate the need for a switch, which in turn saves both time and money.

But this will only work in small-scale or temporary networks, and that too during Crossover Ethernet testing or diagnostics.

Best for Legacy Equipment

Another benefit of RJ45 pinout crossover cables is that they are the best for legacy equipment. The older devices do not have auto-sensing ports due to which means they require crossover cables to communicate properly.

Not many people know this, but the crossover cables are still necessary in industrial systems and military equipment.

Great for a Learning Environment

The RJ45 Pinout crossover cables are also great for learning environments. It is mostly the networking students who use the crossover cables in labs to understand how data flows between similar devices.

The crossover cables give a hands-on experience to the networking students to reinforce concepts like pinouts, data transmission, and protocol negotiation.

Modern Alternatives to Crossover Ethernet Cables

No doubt that crossover cables are still used in many network setups, but these cables also have their limitations. Moreover, the networks have evolved a lot from previous times. Several new technologies and tools are ideal enough to replace the crossover cables.

Check out some alternative options to crossover cables to be used in modern business networks, as per the data cabling electrician.

Devices with auto-MDI/MDI-X Support

The legacy device networking equipment nowadays is not the same as it used to be and has changed a lot. But now? There are auto-sensing Ethernet ports in the networking equipment. The specialty of these ports is that they can automatically detect the configuration required between straight-through and crossover.

Then the signal is adjusted accordingly. This feature is available on desktops, Wi-Fi routers and modems, and enterprise-grade switches. This has made the crossover cables obsolete and has emerged as a great alternative to them.

Managed and Smart Switches

The next alternative to crossover cables is the managed and smart switches. The modern switches come with uplink ports or crossover detection features, which enable them to adjust automatically depending on the device they’re connected to.

Not only this, but the managed switches also support configuring ports to mimic the crossover cable behaviour, which in turn provides them the built-in flexibility.

Wireless ad-Hoc Networks

The next comes the wireless ad-hoc networks. It means that the two laptops can create a wireless ad-hoc network to communicate directly instead of using a physical crossover cable.

But care must be taken while doing so, as this is only useful when Ethernet ports are unavailable or you need mobility. You can consider using it in temporary setups at conferences.

USB-to-Ethernet Adapters

The businesses can also use USB-to-Ethernet Adapters. The USB–to-Ethernet adapters come with built-in auto-crossover. It means that these adapters can easily adapt depending on the type of device connected.

These are the best alternatives to use when working with devices that only have USB ports or in virtual machine environments.

Software-Based Networking Solutions

The software-based networking solutions can also be used in place of crossover cables. The virtual networking tools, such as VirtualBox or VMware, enable you to simulate direct device connections within a virtual environment without requiring any cables.

This is great for IT professionals for testing the routing, firewalls, or peer-to-peer applications.

Loopback Adapters

The loopback adapters are great for testing and can simulate a device-to-device connection. This does not use the cable but the compact hardware interface to do this.

Now, you must have come to know that the modern networking tools are smart, versatile, and ideal for flexible environments.

Final Words

This is everything about the crossover cable in a network setup. You must understand when and when not to use the crossover cable to save time, energy, and, most importantly the money. The best way to set up your network infrastructure is to reach out to the structured cabling contractors and get the Ethernet cable wiring installation.
