What Happens During a Structured Cabling Installation Project in DFW?

Why DFW Businesses Ask This Question Before a Cabling Project

A property manager in Irving calls and says they have a tenant moving in next month. The tenant needs 40 network drops, Wi-Fi throughout the suite, and a clean data closet. The property manager has one question: what exactly is going to happen in this space?

That is one of the most common calls we take at Cabling in DFW. Business owners, office managers, IT directors, and general contractors across Dallas-Fort Worth all want to know the same thing. What does a structured cabling installation actually look like from start to finish? What are the steps? What do they need to prepare? And how long is this going to take?

The answer depends on the building, the business, and the scope of the project. But the process follows a clear sequence that we use on every commercial cabling job, whether it is a 12-drop retail space in Arlington or a 200-drop corporate buildout in Plano.

This guide breaks down every step of a structured cabling installation project in DFW so you know what to expect, what to prepare, and what separates a clean professional install from a messy one you will regret in six months.

Planning a Cabling Project in DFW?

Cabling in DFW can review your space, plan the cable runs, and give you a clear project scope before any work starts. Request a structured cabling quote today.

What Is a Structured Cabling Installation?

A structured cabling installation is the planned design and physical buildout of all the low-voltage wiring that connects devices in a commercial space to a central network point.

That sounds technical, so here is the plain version. Every computer, phone, Wi-Fi access point, camera, printer, and networked device in your office or building needs a cable that runs back to a central rack or patch panel. A structured cabling installation is the project that plans where those cables go, runs them through the building, terminates them at both ends, organizes them in a rack, labels everything, tests every run, and documents the whole thing.

It is different from someone running a single Ethernet cable from a switch to a desk. Structured cabling follows a system. Every cable has a designated path, a labeled port, a tested connection, and a documented location. When it is done right, your IT team or next contractor can walk into the network closet, read the labels, and know exactly where every cable goes.

When it is done poorly, or not done at all, you get a pile of unlabeled cables, dead network drops, slow connections, and a data closet that nobody wants to open.

Quick Answer: What Happens During a Structured Cabling Project?

Short answer: A structured cabling installation in DFW follows a sequence: consultation, site survey, cabling design, material selection, pathway planning, cable pulling, termination, patch panel and rack setup, labeling, Fluke testing, cleanup, documentation, and a final walkthrough. The project length depends on drop count, building type, and access conditions. A 30-drop office might take two to three days. A 150-drop warehouse could take two weeks.

Why Planning Matters Before Any Cable Is Pulled

Most cabling problems we see in Dallas-Fort Worth are not caused by bad cable or bad connectors. They are caused by bad planning. Or no planning at all.

We have walked into offices where the previous installer ran cables to the wrong side of the room because nobody shared the furniture layout. We have seen server closets that were placed next to the bathroom because the GC did not coordinate with the cabling contractor. We have fixed installs where the ceiling was sealed before cables were pulled because nobody scheduled the trades in the right order.

Planning is the step that prevents all of that. It includes a site walkthrough, a floor plan review, device counts, network drop mapping, rack location decisions, ceiling and pathway assessments, and a conversation about how the business expects to grow.

Skip the planning, and the installation gets expensive fast. Rework costs two to three times more than doing it right the first time. If you are interested in what to think about before a cabling project begins, our guide on what to know before starting a data cabling installation covers the preparation side in more detail.

Step 1: Initial Consultation and Project Goals

Every structured cabling installation starts with a conversation. We want to understand what the business needs, not just how many cables to pull.

In the initial consultation, we ask about the type of business, the number of employees, the workstations, the phone system, the security cameras, the Wi-Fi coverage requirements, any special equipment (medical devices, POS terminals, AV gear), and the project timeline.

We also want to know if this is a new buildout, a renovation, a tenant improvement, or an upgrade to existing cabling. Each of those scenarios affects how we plan and schedule the work.

This is also when we discuss the budget range. We do not quote a price over the phone, but understanding the scope early helps us recommend the right cable type and avoid overengineering or underbuilding the system.

Step 2: Site Survey and Walkthrough

After the initial conversation, we schedule a site survey. This is one of the most valuable steps in the process, and it is the one that separates experienced structured cabling contractors from the ones who just show up and start pulling wire.

During the walkthrough, our team checks:

• Ceiling type and accessibility (drop ceiling, hard lid, exposed)
• Existing cable pathways, conduit, and J-hooks
• The location and condition of the current network closet, MDF, or IDF
• Wall construction (drywall, concrete block, glass)
• Fire-rated walls and plenum vs riser requirements
• Where workstations, phones, cameras, printers, and Wi-Fi access points will go
• The distance from the network closet to the farthest drop
• Power availability in the network closet
• Any building rules, lease restrictions, or landlord coordination needed

We take photos, measurements, and notes. If the business has a floor plan, we mark it up with proposed drop locations. If they do not have one, we work with what we can see and build a plan from the walkthrough.

This step takes anywhere from 30 minutes for a small office to a full day for a large warehouse or multi-floor building.

Step 3: Cabling Design and Network Drop Planning

Once we understand the space, we build the cabling design. This is the blueprint for the installation.

The design includes the total number of drops, the location of each wall plate or drop point, the cable pathway from the network closet to each location, the patch panel layout, the rack or wall-mount configuration, and any fiber runs for backbone connections or long-distance links.

We also plan for growth. If a Dallas business has 25 employees today but expects 35 within two years, we run the extra drops now. Cable is cheap. Coming back to add drops after the ceiling is closed and the furniture is in place is not.

The cabling design becomes part of the written proposal. The business sees exactly what they are getting before we start work.

Step 4: Choosing the Right Cable and Materials

Material selection is part of every structured cabling installation. The cable type, the connectors, the patch panels, and the rack hardware all affect performance, longevity, and cost.

Here is what we typically work with on DFW commercial projects:

Material	What It Does	When We Use It
Cat6 UTP Cable	Supports 1 Gbps up to 100m. Standard copper Ethernet.	Budget-conscious small offices, retail, basic desk runs
Cat6A UTP/STP Cable	Supports 10 Gbps up to 100m. Better shielding and PoE+ support.	Growing offices, medical clinics, Wi-Fi 6/6E APs, AV-heavy spaces
Single-Mode Fiber	Very high bandwidth over long distances. Light-based signal.	Backbone between floors, buildings, or from demarc to MDF
Multimode Fiber	High bandwidth over shorter distances. Cheaper transceivers.	Server room switch-to-switch links, short backbone runs
Patch Panels	Termination point for all cable runs inside the network closet.	Every structured cabling project. Typically 24 or 48 port.
Keystone Jacks / Faceplates	Wall outlet where cables terminate at the desk or device location.	Every drop point. Single or dual-port based on need.
Cable Trays / J-hooks	Support cables along the pathway above the ceiling.	Commercial installs where cables run through ceiling plenum
Racks / Wall-mount Brackets	Hold the patch panels, switches, UPS, and cable management.	Every project. Floor-standing for large installs, wall-mount for small.



For most first-time DFW structured cabling installations, Cat6A is the cable we recommend. The price difference between Cat6 and Cat6A material is small compared to the labor. And Cat6A gives the business room to grow into 10 Gigabit speeds, Wi-Fi 6E access points, and higher PoE demands without re-cabling.

Step 5: Pathway Planning and Building Coordination

Before any cable gets pulled, we plan the physical pathway. Where will the cables travel? Through the ceiling plenum? Through conduit in the walls? Along cable trays? Through fire-rated barriers?

This step is especially critical in DFW commercial buildings where the space is shared, the landlord has rules, or the general contractor has a construction schedule. We coordinate with GCs, electricians, HVAC crews, and property managers to make sure cabling happens at the right phase of the buildout.

Pathway planning also includes deciding whether cables need to be plenum-rated (required in most DFW commercial ceiling spaces where the plenum area is used for air return) or riser-rated (for vertical runs between floors).

Get this wrong and you can fail a fire inspection. We make sure the right jacket type goes in the right space.

Not Sure What Your Building Requires?

Cabling in DFW can assess your ceiling type, check for fire-rating requirements, and plan the cable pathways before installation starts. Contact us for a site survey.

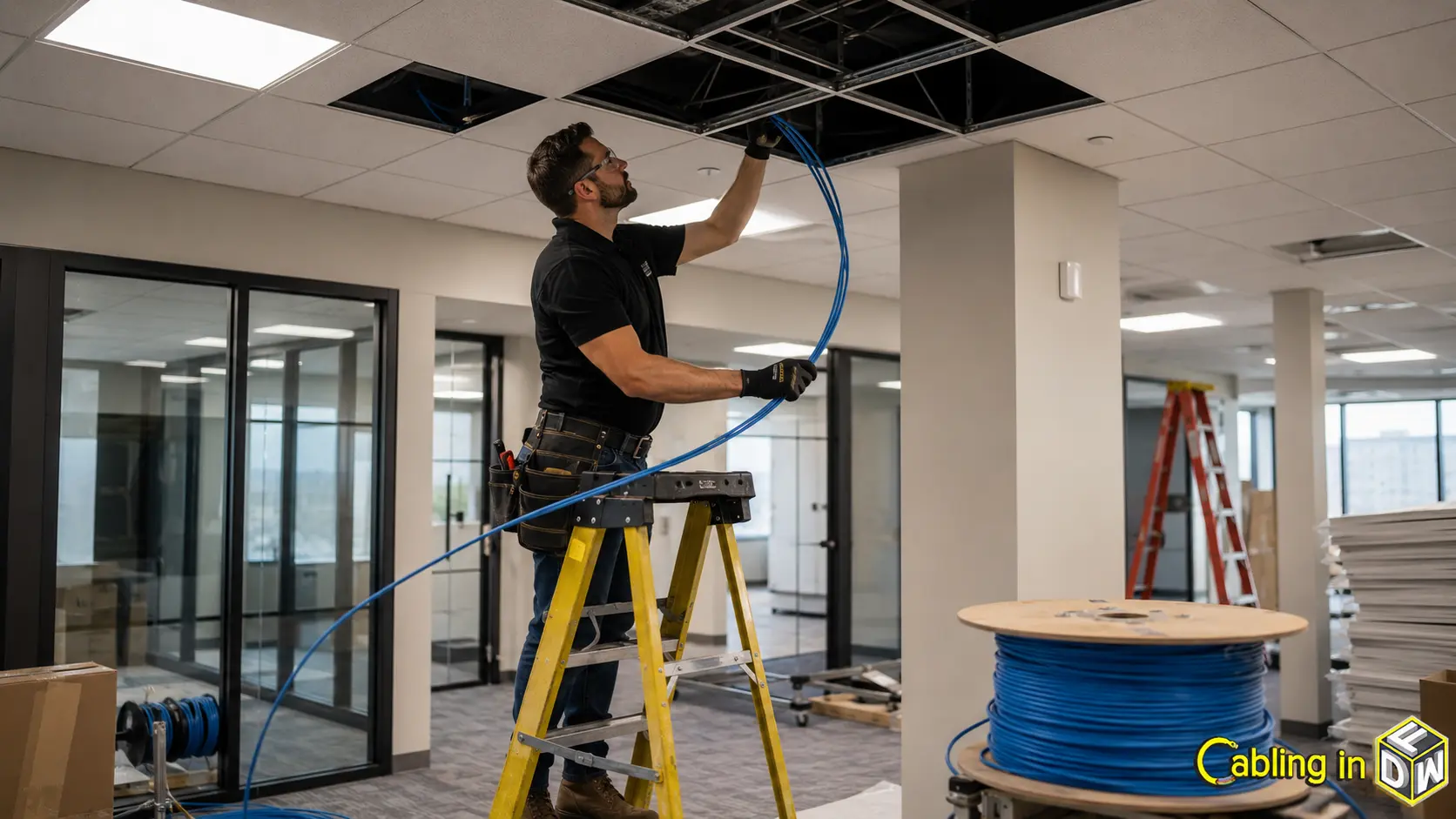

Step 6: Cable Pulling and Installation

This is the part most people think of when they picture a cabling project. Technicians in the ceiling, pulling cable from the network closet to each drop point.

On a well-planned project, cable pulling goes smoothly. The pathways are mapped, the materials are staged, and the team knows exactly where every run needs to go.

Our technicians pull cable in bundles along the planned pathways, using J-hooks, cable trays, or conduit to support the runs. We maintain proper bend radius to avoid kinking the cable, which can cause signal loss or test failures. We keep cable bundles neat and separated from electrical wiring to reduce interference.

For a small DFW office with 20 to 30 drops, cable pulling might take one day. For a larger warehouse or multi-floor building, it can take several days.

One thing that slows cable pulling down more than anything else: ceiling access. Open drop ceilings are quick. Sealed hard-lid ceilings, concrete decks, and tight plenum spaces take more time and more labor.

Step 7: Termination, Patch Panels, and Wall Plates

After the cable is pulled, every run needs to be terminated at both ends. On the room side, cables are terminated into keystone jacks inside wall plates. On the closet side, cables are punched down into patch panels.

Termination is where skill matters. A sloppy punch down causes crosstalk, signal degradation, and failed Fluke tests. Our technicians follow TIA-568B wiring standards on every termination and maintain proper pair untwist lengths to keep the cable performing to spec.

Patch panels are organized logically, usually by room, floor, or zone. This makes it easy for the IT team or the next contractor to trace any cable without opening the ceiling.

Step 8: Rack Setup, Cable Management, and Labeling

A structured cabling installation is not finished when the cables are terminated. The network closet needs to be organized.

We mount the patch panels in a rack (floor-standing or wall-mount depending on the space), add horizontal cable managers between panels, route patch cables cleanly, and dress the cable bundles entering the rack so they are neat and accessible.

Then we label. Every cable gets a label at both ends. The patch panel port matches the wall plate number. A label map is created so anyone can look at the rack, read a port number, and know exactly which room and jack it connects to.

This sounds simple, but most cabling nightmares we fix in DFW start with one thing: unlabeled cables. When nobody knows which cable goes where, troubleshooting takes ten times longer and every future change becomes a guessing game.

Step 9: Cable Testing and Certification

Every single cable run on a Cabling in DFW project gets tested with a Fluke DSX-series tester. No exceptions.

Testing verifies that each cable passes for the rated category (Cat6 or Cat6A), checks for continuity, wire map correctness, length, insertion loss, return loss, crosstalk (NEXT and FEXT), and shielding integrity if applicable.

A cable can look perfectly terminated and still fail. Maybe the pair untwist was too long. Maybe there is a kink in the ceiling. Maybe the cable was pulled past its maximum tension. Testing catches all of that before the furniture goes in and the business goes live.

We deliver a printed or digital test report for every run. This report is part of the project documentation and serves as a certification that the installation meets industry standards.

If you want a closer look at what Fluke testing involves and why it matters, our write-up on Cat6 cable certification and Fluke DSX testing explains the technical side.

Step 10: Cleanup, Documentation, and Final Walkthrough

When the testing is done and every run passes, we clean up. Ceiling tiles go back in place. Scrap cable, packaging, and debris get removed. The workspace is left the way we found it, minus the cable mess.

We deliver project documentation that includes a cable map, test results, label chart, photos of the rack and key installation points, and any notes about the installation that the IT team or building manager should know.

Then we do a final walkthrough with the client. We show them the rack, explain the labeling, demonstrate how to trace a cable from a wall plate to a patch panel port, and answer any questions.

This walkthrough is the handoff. After this, the business can plug in, go live, and start working.

What Should a DFW Business Prepare Before Installation?

The smoother the prep, the faster and cheaper the install. Here is what helps us move quickly:

• Floor plan. Even a rough sketch helps. Mark where desks, printers, cameras, and access points will go.
• Employee and workstation count. Current headcount plus planned growth over the next one to two years.
• Phone system details. Are you using VoIP? Cloud phones? Each handset needs a drop.
• Wi-Fi access point locations. If you are not sure, we can recommend placement during the site survey.
• Security camera and access control plans. Where do cameras need to be? Any badge readers on doors?
• IT equipment inventory. Switches, firewalls, servers, UPS, and any other gear going in the closet.
• Building access and hours. Can we work during business hours or only after hours? Key cards, loading dock access, elevator freight access if applicable.
• Landlord or property manager contact. We may need approval or coordination for ceiling work, wall penetrations, or riser access.
• GC coordination. If a general contractor is running the buildout, we need to be on their schedule.

The businesses that come to us with a floor plan, device counts, and a timeline save days on the project and avoid surprises on the invoice.

What Can Delay a Structured Cabling Installation Project?

We have seen projects delayed by a week over things that could have been handled in a five-minute conversation. Here are the most common causes:

• No ceiling access. Sealed ceilings, hard lids, or ceilings with fire suppression systems that restrict movement above the tiles.
• Construction not ready. If the drywall is not up, the drop ceiling is not in, or the HVAC ductwork is still being run, cabling gets pushed back.
• Missing or outdated floor plans. If we do not know where the furniture goes, we cannot plan where the drops go.
• Unclear device counts. “We need some network drops” is not a scope. We need numbers.
• Building rules discovered late. Some DFW buildings require specific cable types, approved contractors, or after-hours-only work.
• Landlord approval delays. If the property manager has not signed off on wall penetrations or ceiling access, we cannot start.
• Other trades blocking pathways. If the electrician’s conduit fills the pathway we planned, something needs to move.

The fix for most of these is early coordination. The earlier Cabling in DFW is involved in the project timeline, the fewer surprises show up on install day.

Fiber, Cat6, and Cat6A: Which Cabling Option Fits Your Business?

This question comes up on nearly every DFW structured cabling project. Here is the short version:

• Cat6: Good for basic office runs. Supports 1 Gbps at up to 100 meters. Cost-effective for small spaces where 10G is not needed.
• Cat6A: Better for most commercial installs. Supports 10 Gbps at full 100-meter distance. Handles PoE+ for cameras and access points. Works with Wi-Fi 6 and 6E. The price gap is shrinking, and we recommend Cat6A for any business that plans to stay in the space for more than three years.
• Single-mode fiber: Used for backbone runs between floors, buildings, or from the demarc to the MDF. High bandwidth, long distance. Requires specialized termination.
• Multimode fiber: Used for shorter backbone runs inside the building. Cheaper transceivers. Works well for server room connections and switch uplinks.

Most DFW offices use Cat6A for horizontal runs (desk to closet) and fiber for backbone runs (closet to closet or building to building). That combination covers 95 percent of what a typical commercial business needs.

Real-World Structured Cabling Examples in DFW

Dallas Office Suite Buildout

A 30-person marketing agency moved into a 5,000-square-foot suite near the Dallas Design District. They needed 60 desk drops, six Wi-Fi access points, two conference rooms with four drops each, a print room, and a clean MDF with a 12U wall-mount rack. Cat6A throughout. The site survey took two hours, the design was finalized in three days, and the install took four business days. Every cable was Fluke-tested and labeled before the furniture arrived.

Fort Worth Warehouse Expansion

A distribution company in Fort Worth added 15,000 square feet of warehouse space and a small front office. They needed office drops for eight staff, Wi-Fi in the warehouse for handheld scanners, IP cameras at every loading dock, and a fiber run from the existing MDF to a new IDF in the warehouse. The fiber backbone was single-mode, and the horizontal runs were Cat6A. The project took eight business days including rack buildout and testing.

Plano Medical Clinic

A new primary care clinic in Plano needed cabling for exam rooms, check-in desks, a lab workstation, a small server, security cameras at the entrance and parking lot, and dual-network Wi-Fi (separate SSIDs for staff and patients). HIPAA considerations meant the network closet needed a lock, the cabling needed to be clean and documented, and the test reports needed to be saved for compliance files. Total: 50 drops, completed in five days.

Irving Retail Space

A specialty retailer in Irving needed a POS terminal, two back-office workstations, one IP camera, and a Wi-Fi access point for the sales floor. Simple install, about 10 drops, done in a single day with a small wall-mount rack in the back storage room. Cat6 was enough for this scope.

DFW Commercial Building Remodel

A commercial landlord in the DFW mid-cities was remodeling a two-story office building for new tenants. Each floor needed a dedicated IDF, fiber backbone between the two IDFs and the building MDF, and pre-wired network drops in every suite so tenants could plug in without running their own cable. Total: 120 drops across six suites, two fiber backbone runs, and three rack buildouts. The project took two and a half weeks.



Why DFW Businesses Choose Cabling in DFW

• 15+ years of commercial cabling experience across Dallas-Fort Worth
• 400+ projects completed: offices, warehouses, medical clinics, retail, restaurants
• Cat6, Cat6A, and fiber optic installation and testing
• Clean, documented, Fluke-tested cable runs on every project
• Custom cabling plans for new buildouts, expansions, and relocations

Contact Cabling in DFW for a site assessment and project quote.



How Much Does a Structured Cabling Installation Project Cost?

We do not publish fixed pricing because no two projects are the same. But we can explain the factors that affect what a DFW business will pay.

• Number of drops. This is the biggest cost driver. More drops means more cable, more terminations, more testing, and more labor.
• Cable type. Cat6A costs slightly more per foot than Cat6. Fiber adds cost due to specialized connectors and termination gear.
• Building layout. Open ceilings are faster. Hard-lid ceilings, concrete walls, and long runs add time.
• Rack and patch panel work. A new rack buildout with cable management, power, and grounding is a separate line item from the cable runs.
• Testing and labeling. Fluke certification adds time but it is not optional on a professional install. Labeling adds a small amount of time but saves hours on future troubleshooting.
• After-hours work. If the building is occupied and work can only happen evenings or weekends, expect a premium.
• New construction vs retrofit. Running cable in an empty shell is faster and cheaper than retrofitting cable into a finished, furnished office.

Our cabling calculator can give you a rough starting point for estimating your drop count and project scope.

Every Cabling in DFW proposal breaks out every line item: drop count, cable type, materials, labor, testing, labeling, rack work, and any extras. No surprises.

What Is the ROI of Professional Structured Cabling?

Structured cabling is not a line item that shows up on a profit and loss statement, but it affects almost everything that does.

• Fewer network issues. Tested, certified cable runs mean fewer dropped connections, fewer dead ports, and fewer calls to the IT team.
• Faster troubleshooting. Labeled cables and a documented cable map mean any technician can find a problem in minutes instead of hours.
• Cleaner future upgrades. When the business adds desks, moves departments, or upgrades switches, a well-organized rack makes the change quick.
• Better Wi-Fi performance. Wi-Fi access points only work as well as the cable feeding them. A Cat6A run to a properly placed AP gives better coverage and speed than a cheap cable to a random spot.
• Faster workstation setup. New employee starts Monday? Plug the cable into the patch panel, connect the desk, and they are online in five minutes.
• Support for VoIP, cameras, and cloud apps. Phones, IP cameras, cloud-based EHR systems, and video conferencing tools all depend on a solid wired backbone.

The cost of a structured cabling installation is a one-time investment. The cost of a bad install, or no structured install at all, shows up every month in downtime, slow connections, and expensive rework.

How to Choose the Right Structured Cabling Contractor in DFW

There are plenty of people who will run cable in Dallas-Fort Worth. Finding one who will do it right takes a little more digging. Here is what to look for:

• Commercial experience. Ask how many commercial installs they have done. Office, warehouse, medical, retail, multi-floor. Residential wiring is a different skill set.
• Local DFW availability. A local team responds faster, coordinates better with GCs and property managers, and can handle warranty or follow-up work without long wait times.
• Fluke testing on every run. If they do not test, or they “test” with a $40 cable tester from Amazon, that is not certification.
• Labeling standards. Both ends of every cable. Patch panel to wall plate. If they do not label, walk away.
• Written proposal with line items. No verbal quotes. No vague “around this much.” You should see drop count, cable type, materials, labor, testing, and timeline before work starts.
• Photos of completed work. Ask for photos of patch panels, racks, and cable pathways from past projects. Clean work is obvious. So is sloppy work.
• Coordination ability. Can they work with your IT team, your GC, your landlord, and your furniture vendor? Structured cabling is a team sport on commercial projects.

If you are comparing options, look for a data cabling installation company that shows their process, not just their price.

Need a Structured Cabling Contractor in DFW?

Cabling in DFW handles commercial cabling from site survey to final testing. Contact us for a walkthrough and detailed proposal.

FAQs About Structured Cabling Installation in DFW

How long does a structured cabling installation take?

It depends on the number of drops, the building type, and ceiling access. A 20 to 30 drop office install typically takes two to three business days. A 100+ drop warehouse or multi-floor project can take one to three weeks. New construction with open ceilings goes faster. Retrofitting into a finished, occupied space takes longer.

What is included in a structured cabling project?

A full structured cabling installation includes the initial consultation, site survey, cabling design, cable pulling, termination at both ends (wall plates and patch panels), rack or wall-mount setup, cable management, labeling, Fluke testing, cleanup, documentation, and a final walkthrough.

Do I need Cat6 or Cat6A cabling?

For most DFW commercial installs, we recommend Cat6A. It supports 10 Gbps at the full 100-meter distance, handles PoE+ for cameras and Wi-Fi access points, and gives the business room to grow. The material cost difference is small compared to the labor cost of running cable. If the budget is very tight and the business is small, Cat6 works for basic office needs.

Can structured cabling be installed after business hours?

Yes. We regularly do after-hours and weekend installs in occupied DFW buildings. There is usually a labor premium for off-hours work, but it avoids disruption to the business. In many commercial buildings, after-hours work is required by the landlord or property manager.

Does my business need fiber optic cabling?

Most single-floor offices do not need fiber for desk runs. Copper (Cat6 or Cat6A) handles everything within 100 meters. Fiber is used for backbone runs between floors, between buildings, or from the building demarc to the network closet on long runs. Multi-floor or multi-building campuses almost always need fiber somewhere in the design.

What should I prepare before the cabling contractor arrives?

Have a floor plan ready, even a rough sketch. Know your employee count, workstation locations, phone needs, camera plans, and Wi-Fi requirements. Confirm building access hours and any landlord rules. If a GC is involved, make sure cabling is on the construction schedule. The more information you bring to the initial consultation, the faster and more accurate the proposal will be.

Why is cable testing important?

A cable can look perfectly installed and still fail. Testing with a Fluke DSX-series tester catches problems like excessive pair untwist, cable kinks, wrong wiring order, interference from nearby electrical runs, and out-of-spec insertion loss. Without testing, you will not know about a bad cable until someone plugs in and the connection drops. By then, the ceiling is closed and the furniture is in the way.

Plan the Cabling Before It Becomes a Problem

A structured cabling installation is one of those projects that either saves you money for years or costs you money for years. There is not much middle ground.

If you are planning a new office, expanding a warehouse, remodeling a commercial space, or opening a medical clinic in Dallas-Fort Worth, the cabling plan should be one of the first things on the project list.

Cabling in DFW handles structured cabling from first conversation to final walkthrough. We plan it, pull it, terminate it, label it, test it, and document it. Whether it is a 10-drop retail space in Arlington or a 200-drop corporate buildout in Plano, the process is the same.

Contact Cabling in DFW to schedule a site survey and start your structured cabling project the right way.
