Fusion Splicing vs Mechanical Splicing for Dallas Fiber Networks

Why Fiber Splicing Matters for Dallas Businesses

Most Dallas business owners think about fiber once, usually when the network installer runs it. After that, it becomes invisible infrastructure until something goes wrong.

Then a forklift clips a cable in the warehouse. Or a contractor accidentally cuts through a conduit during a renovation. Or a fiber link that has been working fine starts dropping connections and nobody can figure out why.

Fiber splicing is what happens when two fiber strands need to be joined. This may happen during new installation, after damage, during a building expansion, or when extending an existing run. How that splice is made directly affects how reliably your network performs afterward.

Dallas businesses rely on fiber for more than just internet. VoIP phone systems, cloud applications, security cameras, Wi-Fi access points, data rooms, and building-to-building connections all run on fiber backbone links in commercial properties across DFW. A poor splice anywhere in that chain can create slow speeds, dropped connections, weak signal, and hours of troubleshooting that trace back to one bad joint in the cable.

Most business owners have never heard the terms fusion splicing or mechanical splicing. You do not need to become a fiber technician. But understanding the difference helps you ask better questions when a contractor comes on-site, make a smarter decision when a repair quote lands on your desk, and avoid paying for a quick fix that causes a bigger problem six months later.

Our fiber optic installation services in Dallas cover both new fiber runs and repairs. Part of that work is making sure every splice is done right and tested before the crew leaves the site.

What Is Fiber Splicing?

Fiber splicing means joining two separate fiber optic strands so light can pass from one into the other without significant loss.

Fiber carries data as pulses of light. The core of a single-mode fiber strand is roughly 9 microns in diameter, about one tenth the width of a human hair. For a splice to work properly, the two fiber ends have to be aligned almost perfectly. Even a slight misalignment, gap, or contamination creates signal loss.

Splicing comes up in several situations for Dallas commercial properties:

1. Damaged fiber repair: A cable gets cut, crushed, or damaged and the break needs to be restored.
2. Backbone cable installation: Long runs that exceed a single cable reel length need mid-span splices.
3. Multi-building connections: Outdoor fiber running between buildings terminates inside splice enclosures.
4. Data room upgrades: Existing fiber links may need to be extended or reconfigured inside a network room.
5. ISP handoff extensions: Carrier-provided fiber may need to connect to your internal network equipment.
6. Warehouse and campus network work: Large footprints often require fiber runs where cable reels need to be joined.

There are two common methods for splicing fiber: fusion splicing and mechanical splicing. They produce different results, require different equipment, and suit different situations.

What Is Fusion Splicing?

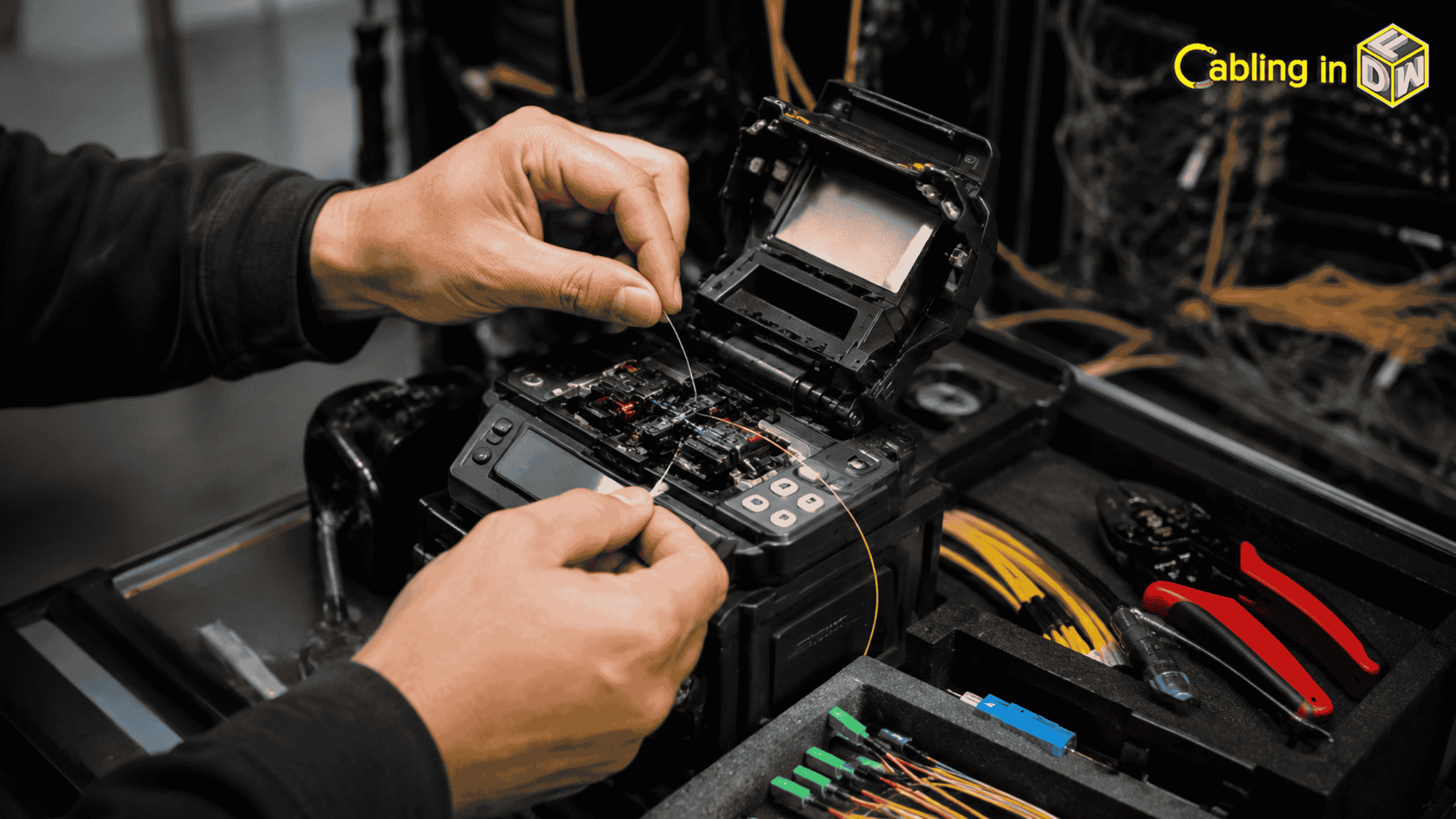

Fusion splicing uses a machine called a fusion splicer. The two fiber ends are stripped, cleaned, and cleaved, which means cut to a precise flat angle. The splicer then aligns them automatically using cameras and motors, and fires an electric arc that melts the two glass ends together.

The result is a permanent, continuous fiber joint. The two strands are physically joined as one piece of glass.

For Dallas commercial fiber work, fusion splicing is the standard choice when:

1. The fiber link is a permanent part of the business network.
2. The run connects buildings, floors, or network rooms over any meaningful distance.
3. The fiber supports backbone systems such as internet, VoIP, security cameras, and cloud access.
4. The project involves high-count fiber cables with 12, 24, 48, or more strands.
5. The splice will be tested and certified before the network goes live.
6. Long-term reliability matters more than installation speed.

Belden’s fiber splicing comparison notes that fusion splicing has become a preferred option for fiber termination because it physically joins the fibers together, resulting in lower insertion loss than mechanical methods.

The fusion splicer itself is specialized equipment that costs significantly more than a mechanical splicing toolkit. That is part of why fusion splicing has a higher service cost. But across a large installation with many splices, the per-splice cost often works out better because the variable cost per joint is lower.

What Is Mechanical Splicing?

Mechanical splicing does not melt anything.

Instead, a mechanical splice connector uses a small alignment sleeve or housing to hold two fiber ends precisely in position. The two fibers do not fuse. They are aligned and clamped. Index-matching gel inside the connector helps fill the gap and allows light to pass through with less scattering.

The setup is faster. No fusion splicer is required. A technician can carry a mechanical splicing toolkit in a bag and work in locations where hauling fusion splicer equipment is not practical.

NSI’s data shows that mechanical splice assemblies are self-contained units that hold two separate fiber pieces together using physical alignment rather than heat bonding.

That speed advantage is real in certain situations:

1. A fiber link goes down and the business needs connectivity restored quickly.
2. The repair site is difficult to access or set up larger equipment.
3. The splice is temporary and only needed until a better repair can be scheduled.
4. The job is small, such as a single strand repair on a non-critical link.
5. Emergency restoration is needed and any working connection is better than no connection.

The trade-off is performance. Mechanical splices typically have higher insertion loss than fusion splices. They are also more sensitive to environmental changes over time. Temperature, moisture, and vibration can affect how well the fiber ends stay aligned inside the housing.

Fusion Splicing vs Mechanical Splicing: Quick Comparison

NSI’s comparison confirms that fusion systems generally produce lower connection loss, while mechanical systems are faster to set up and require less upfront equipment investment.

Which Splicing Method Has Lower Signal Loss?

Signal loss matters in fiber because everything runs on clean light transmission. The signal starts at one end of the cable, travels as light, and needs to arrive at the other end with enough power to be usable. Every splice, connector, and bend in the cable takes a small cut of that signal.

Insertion loss is the measurement of how much signal power is lost at a joint. Lower numbers are better.

Belden’s technical data puts fusion splicing insertion loss at typically under 0.1 dB per splice. Mechanical splicing runs higher, from around 0.2 dB up to 0.75 dB depending on the connector quality, fiber alignment, and installation conditions.

On a short single-strand repair, that difference might not be noticeable. But it compounds.

M2 Optics explains that loss adds up across a fiber span when multiple splice points exist. A warehouse backbone that crosses 600 feet and has four splice points is a very different situation from a short patch cable in a network closet. If those four splices are mechanical and each adds 0.5 dB of loss, you have added 2 dB to the link budget before accounting for connectors, cable bends, and other factors.

For Dallas businesses running fiber across large footprints, including warehouses, multi-floor office buildings, medical campuses, and multi-building business parks, cumulative splice loss is a real issue. One mechanical splice in a pinch is manageable. A fiber backbone built entirely on mechanical splices is a network waiting to cause problems.

This is also why fiber testing after splicing matters so much. You cannot see signal loss visually. A splice can look clean and still fail a light loss test. Understanding how OLTS improves fiber optic installation accuracy explains why end-to-end testing is the only reliable way to confirm a splice is performing within spec.

Which Splicing Method Is Better for Dallas Business Fiber Repairs?

The answer depends on what kind of repair you are dealing with.

Fusion splicing is the better choice when:

1. The repair must last and not be revisited in six months.
2. The fiber link supports business-critical systems such as internet, VoIP, cloud access, and security cameras.
3. The run is long or part of a multi-building connection.
4. The fiber is part of the backbone, not a short patch run.
5. The repair will be tested and certified with OTDR or OLTS documentation.
6. Downtime from repeat repairs would cost more than doing it right the first time.

Mechanical splicing may make sense when:

1. The business needs connectivity restored immediately and a fusion splicer is not on-site.
2. The repair site is in a tight or difficult location.
3. The splice is explicitly temporary until a proper repair is scheduled.
4. The damaged strand is on a non-critical link where higher loss is acceptable short-term.
5. A single strand in a high-count cable needs emergency restoration while the rest stay live.

M2 Optics notes that many operators use both methods depending on the situation. Mechanical splices are often used for quick restoration or difficult environments, while fusion splicing is used for permanent performance-focused links.

The honest field answer is that fusion splicing is almost always the right permanent repair. Mechanical splicing exists as a tool for situations where fusion is not practical in the moment. Treating a mechanical splice as a permanent solution on a critical Dallas business fiber link is a decision that tends to come back around.

Dallas Business Examples: When Each Method Makes Sense

Dallas Office Building

A Dallas law firm on the fourth floor of a mid-rise runs fiber from the main telecom room on the ground floor to the IDF on each floor. Those backbone links feed every workstation drop, VoIP phone, and Wi-Fi access point in the building.

When a contractor accidentally damages one of those backbone fibers during a renovation, fusion splicing is the right repair. The link is permanent, the building depends on it daily, and it needs to be tested and certified after repair. A mechanical splice here creates an ongoing weak point in a link that has to survive years of normal use.

DFW Warehouse

A distribution center in Irving runs fiber from the main office to security cameras at four corners of the building, Wi-Fi access points above the picking floor, and a small network closet near the shipping dock. The runs are 200 to 500 feet each.

Every one of those links benefits from fusion splicing. The distances are long enough that insertion loss adds up, and the systems running on those links, including cameras, inventory software, and access control, directly affect daily operations.

Medical Office or Clinic

A medical practice in Plano connecting two suites in the same building needs fiber for patient check-in systems, EHR access, imaging software, and VoIP phones. Downtime in a medical office does not just mean slow internet. It means delayed patient care and staff working around broken tools.

Fusion splicing for any permanent fiber link here is the obvious call. Reliability is not optional when the network supports clinical operations. For more on why fiber specifically makes sense in professional office environments, does your business need a fiber optic cable installation covers the full decision framework.

Multi-Building Business Site

An office park in Frisco with three buildings on the same property needs underground fiber connecting each building to a central network room. The runs are 300 to 800 feet. Each run exits the building, goes underground through conduit, and terminates in a splice enclosure at each end.

Fusion splicing is the standard for this work. Longer runs with more loss budget pressure, outdoor exposure, and splice enclosures that need to last years in the ground make fusion the only practical choice for a professional installation. See also: fiber optic cable installation between offices for what to plan when multiple buildings need a shared backbone.

Emergency Fiber Outage

A fiber link goes down at 7am in a Dallas office building. The whole floor loses internet. A contractor is on-site within two hours and makes a mechanical splice to get connectivity back while a proper repair is scheduled.

That mechanical splice is a temporary fix, not the end of the job. The right next step is scheduling fusion splicing to replace it, followed by OTDR testing to confirm the link is clean. Also worth reviewing: top causes of fiber optic cable damage and interference if the cause of the outage is not immediately obvious.

What Happens If Fiber Splicing Is Done Poorly?

A bad splice does not always announce itself loudly. Sometimes it shows up immediately as a failed link. More often it shows up gradually as a connection that works most of the time, drops intermittently, or performs just below where it should.

Poor fiber splicing can cause:

1. Slow network performance that does not trace back to the router or ISP.
2. Intermittent connection drops that restart when someone moves a cable or the temperature changes.
3. Weak signal across the fiber span that gets worse over time.
4. High insertion loss that fails testing but may not cause obvious problems immediately.
5. Reflectance problems that create ghost signals on the line.
6. Unreliable security camera feeds, access control failures, or VoIP call quality issues.
7. Repeat service calls where technicians keep testing the wrong part of the network.
8. Downtime that costs more in productivity than the original repair would have.

A poor splice may look finished physically. The fiber is joined, the enclosure is closed, and the cable is routed. But the fiber link may still fail testing or perform below spec. Visual inspection tells you nothing about insertion loss.

Why Fiber Testing Matters After Splicing

Testing is not a formality. It is the only way to confirm that a splice is actually performing within spec before the network goes live or the repair is signed off.

Visual checks are not enough. A fiber splice can look perfect under inspection and still have insertion loss problems that only show up under load or across longer cable spans. The eye cannot see signal attenuation.

Dallas businesses should always ask whether the installer performs fiber testing as a standard part of the job, not as an add-on.

Two testing methods matter most:

1. OTDR testing: OTDR stands for Optical Time-Domain Reflectometer. It sends pulses of light down the fiber and reads the reflections back. It shows the location of splice points, connectors, faults, bends, and loss events along the entire run.
2. OLTS testing: OLTS stands for Optical Loss Test Set. It measures end-to-end insertion loss across the full fiber link. It gives the total loss number from one end to the other, which can be compared against the acceptable loss budget for the link.

Both tools together give a complete picture. OTDR shows where problems are. OLTS confirms whether the total loss is within spec.

For a deeper look at why OLTS is particularly important for confirming installation accuracy, how OLTS improves fiber optic installation accuracy covers the measurement approach and why it catches problems that visual inspection misses.

After any splice job, whether fusion or mechanical, the contractor should provide test results that show insertion loss per strand, OTDR traces if applicable, and pass or fail confirmation against the link loss budget. That documentation protects you and gives the next technician a baseline if something changes later.

Fusion Splicing Cost vs Mechanical Splicing Cost

This is the question that drives a lot of poor repair decisions. Mechanical splicing looks cheaper in the moment. That is not always the full picture.

Belden’s technical data explains the cost structure clearly. Fusion splicing has higher upfront equipment cost but lower variable cost per splice. Mechanical splicing does not need the same tool investment, but the per-splice material cost is higher, and that cost adds up on any job with a significant strand count.

What actually affects the cost of a fiber splicing job in Dallas:

1. Number of fiber strands
2. Single-mode vs multimode fiber
3. Indoor vs outdoor fiber
4. Access conditions
5. Emergency repair vs planned installation
6. Testing requirements
7. Splice tray and enclosure needs
8. Distance and pathway
9. Whether new cable must be pulled
10. Business hours vs after-hours work

The honest cost comparison is this: for any job with more than a handful of splices on a permanent link, fusion splicing is almost always more cost-effective over the life of the installation. The per-splice material cost is lower, the performance is better, and you avoid callback costs when mechanical splices degrade or fail testing.

Fusion Splicing vs Mechanical Splicing for New Fiber Installation

When the project is a new commercial fiber installation rather than a repair, the decision is even clearer.

New commercial fiber installations almost always benefit from fusion splicing. You are building infrastructure meant to last 10 to 15 years or more. The backbone links connecting floors, buildings, network rooms, and data rooms are not places to cut corners on splice quality.

Mechanical splicing on a new installation introduces higher loss points from day one, creates maintenance issues if the connectors loosen or degrade over time, and may not pass certified testing standards required for structured cabling systems.

The applications where fusion is standard on new DFW commercial installations include:

1. Backbone fiber between MDF and IDF locations in multi-floor buildings.
2. Underground fiber between buildings on the same campus or business park.
3. Fiber to data rooms, server rooms, and co-location spaces.
4. High-count fiber cables for warehouse networks with many termination points.
5. Outside plant fiber where splice enclosures need to be weatherproof and maintenance-free for years.

Cable quality matters just as much as splice quality on new installations. The splice is only as reliable as the fiber it joins.

Corning fiber optic cable solutions include loose tube, ribbon, and microduct options built for commercial and outside plant applications. These are the kinds of cable options that hold up over years in conduit or underground runs.

Leviton fiber optic systems support enterprise office buildings, remote telecom rooms, cloud data centers, and service provider environments. They cover the patch panel and enclosure side of a clean fiber termination system.

For businesses planning a new fiber run alongside their structured cabling project, our structured cabling installation services cover the full scope from backbone fiber to workstation drops.

If you want to understand how the fiber backbone connects into your broader network performance goals, structured cabling and high-speed fiber networks covers how these two systems work together.

How to Choose the Right Splicing Method

Use this decision table to match your business situation to the right choice. If you are unsure which row fits your project, the next section explains exactly what questions to ask a contractor before agreeing to any scope.

Questions Dallas Businesses Should Ask Before Hiring a Fiber Splicing Contractor

The splice method is only part of what separates a good fiber contractor from a questionable one. Before any contractor touches your fiber, here are the questions worth asking:

1. Do you handle both fusion and mechanical splicing, and can you explain which one you recommend for my specific job?
2. Do you test the fiber after splicing, or is the job done when the splice is physically made?
3. Do you provide OTDR or OLTS test results as part of the job documentation?
4. Can you work with both single-mode and multimode fiber?
5. Can you repair damaged fiber and pull new fiber if the damaged section needs to be replaced?
6. Do you handle indoor and outdoor fiber, including splice enclosures and underground conduit work?
7. Can you support commercial offices, warehouses, multi-building business parks, and data rooms?
8. Do you label and document the fiber links so future technicians know what is what?
9. Can you inspect the splice enclosure, pathway, and network closet as part of the repair or installation?
10. Do you serve Dallas and the wider DFW metroplex, including Plano, Frisco, Irving, Arlington, and surrounding areas?

A contractor who can answer all of these questions clearly and specifically is a contractor who has done this work properly before. One who deflects on testing, cannot discuss OTDR, or does not mention documentation is a contractor to be cautious about.

Why Dallas Businesses Choose Cabling in DFW for Fiber Splicing and Installation

Cabling in DFW is a local Dallas-Fort Worth commercial cabling contractor. The work covers fiber optic installation, fiber repair, structured cabling, network cabling, and full commercial buildouts.

What that means in practice:

1. Local to DFW: No travel delays and no out-of-town contractors unfamiliar with local properties.
2. Commercial fiber installation and repair: Support for offices, warehouses, medical spaces, data rooms, retail, and multi-building sites.
3. Fiber testing as standard: OTDR and OLTS testing on fiber links, not as an afterthought.
4. Structured cabling experience: Fiber backbone plus copper drops, patch panels, racks, and network closets handled together.
5. Clean cable management and labeling: Every job is documented so future maintenance does not become a guessing game.
6. Support for different fiber environments: Single-mode and multimode fiber, indoor and outdoor runs, and splice enclosure work.

For businesses that need more than just fiber, including copper drops, Cat6 runs, network closet cleanup, and voice and data cabling, our office cabling Dallas services cover the full buildout from fiber backbone to every device in the office.

If your project involves fiber that also needs to support faster speeds across your existing infrastructure, fiber optic cable installation to increase speed explains how fiber upgrades translate to real performance improvements in commercial environments.

And for businesses weighing fiber cable specifications before a new installation, OS1 vs OS2 fiber, which suits your business network in 2026, breaks down the single-mode fiber types and which one fits different commercial use cases.

The Signal Verdict: Which Splicing Method Should Your Business Use?

For most permanent Dallas business fiber networks, fusion splicing is the better long-term choice. It provides lower signal loss, stronger reliability, and cleaner test results. It is the standard method for backbone links, building-to-building connections, data rooms, and any fiber installation meant to last.

Mechanical splicing still has a legitimate role. It gets connections back online quickly. It works in difficult field environments. It is a useful tool for temporary restoration when speed matters more than permanence.

The honest answer is that the best splicing method is the one that fits the actual job, not a default based on what equipment the contractor brought on the truck. A good fiber contractor looks at the link, understands what it supports, and recommends the right approach.

If your Dallas business has damaged fiber, a slow network that does not have an obvious cause, or a new fiber installation project, the right first step is getting someone on-site to inspect the link and test what is there.

Frequently Asked Questions

Is fusion splicing better than mechanical splicing?

For most permanent business fiber networks, yes. Fusion splicing creates a stronger connection with lower signal loss and better long-term reliability. Mechanical splicing can still be useful for quick repairs, temporary fixes, or difficult field conditions where speed matters more than permanence.

When should a Dallas business use mechanical splicing?

A Dallas business may use mechanical splicing when a quick temporary repair is needed, when fusion equipment is not practical on-site, or when the repair is small and not part of a critical long-term fiber backbone. It is a useful emergency tool, not a permanent solution for business-critical links.

Does fiber splicing affect internet speed?

Yes. Poor fiber splicing can increase signal loss and create weak performance, especially when the fiber link already has multiple connections or long cable runs. Clean splicing and proper testing protect both speed and reliability. A link with several poorly made splices can degrade gradually over time.

What is insertion loss in fiber splicing?

Insertion loss is the amount of signal power lost when a splice or connector is added to a fiber link. Lower insertion loss is better because more light passes through cleanly. Fusion splicing typically achieves under 0.1 dB per splice. Mechanical splicing can run from 0.2 dB to 0.75 dB depending on the connector and installation conditions.

Should fiber be tested after splicing?

Yes, always. Fiber should be tested after splicing to confirm the connection is clean, stable, and within acceptable loss limits. A splice can look physically complete and still fail a light loss test. Testing with OTDR and OLTS catches hidden problems before they cause downtime.

Is fusion splicing used for commercial buildings?

Yes. Fusion splicing is the standard method for commercial buildings, data rooms, warehouses, campuses, and multi-building business networks where long-term fiber reliability matters. It is the preferred approach for backbone links, ISP handoff connections, and any fiber installation that needs to perform reliably for years.

Who should handle fiber splicing in Dallas?

A trained fiber optic installer or commercial cabling contractor should handle fiber splicing. The contractor should understand fusion and mechanical splicing, fiber testing with OTDR and OLTS, cable labeling and documentation, and commercial network requirements for offices, warehouses, data rooms, and multi-building sites.
